List of product in ""

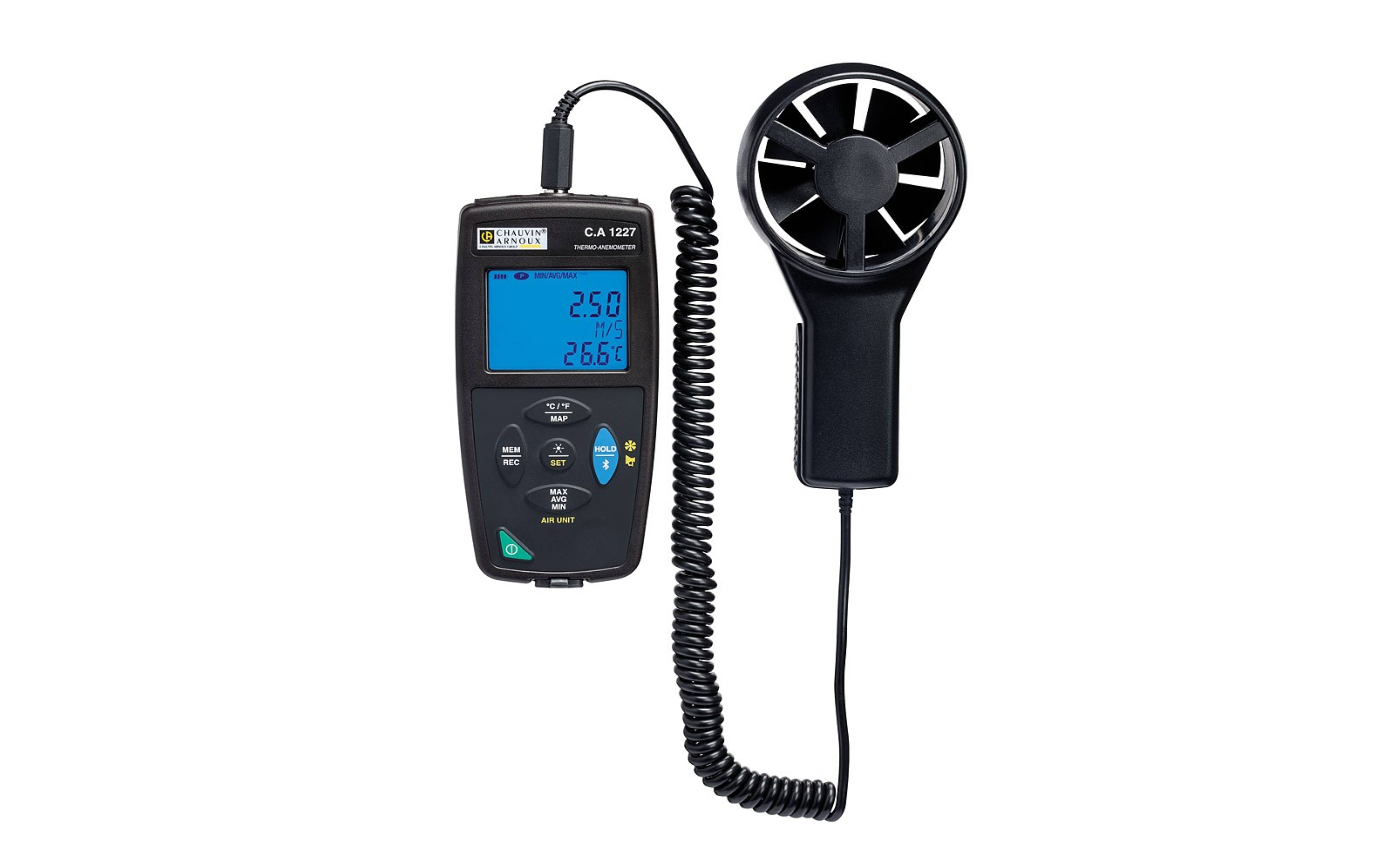

Equipped with a wide backlit display, the CA 1227 offers all the useful functions for measuring air speed and flow rate in the field, such as Min, Max, Average, MAP and Hold as well as extensive recording capabilities. With the cones available as accessories, it is possible to perform direct flow rate measurements.
The Data Logger Transfer software is available for free download to view the recorded data, configure the CA 1227, benefit from remote display and generate automatic reports

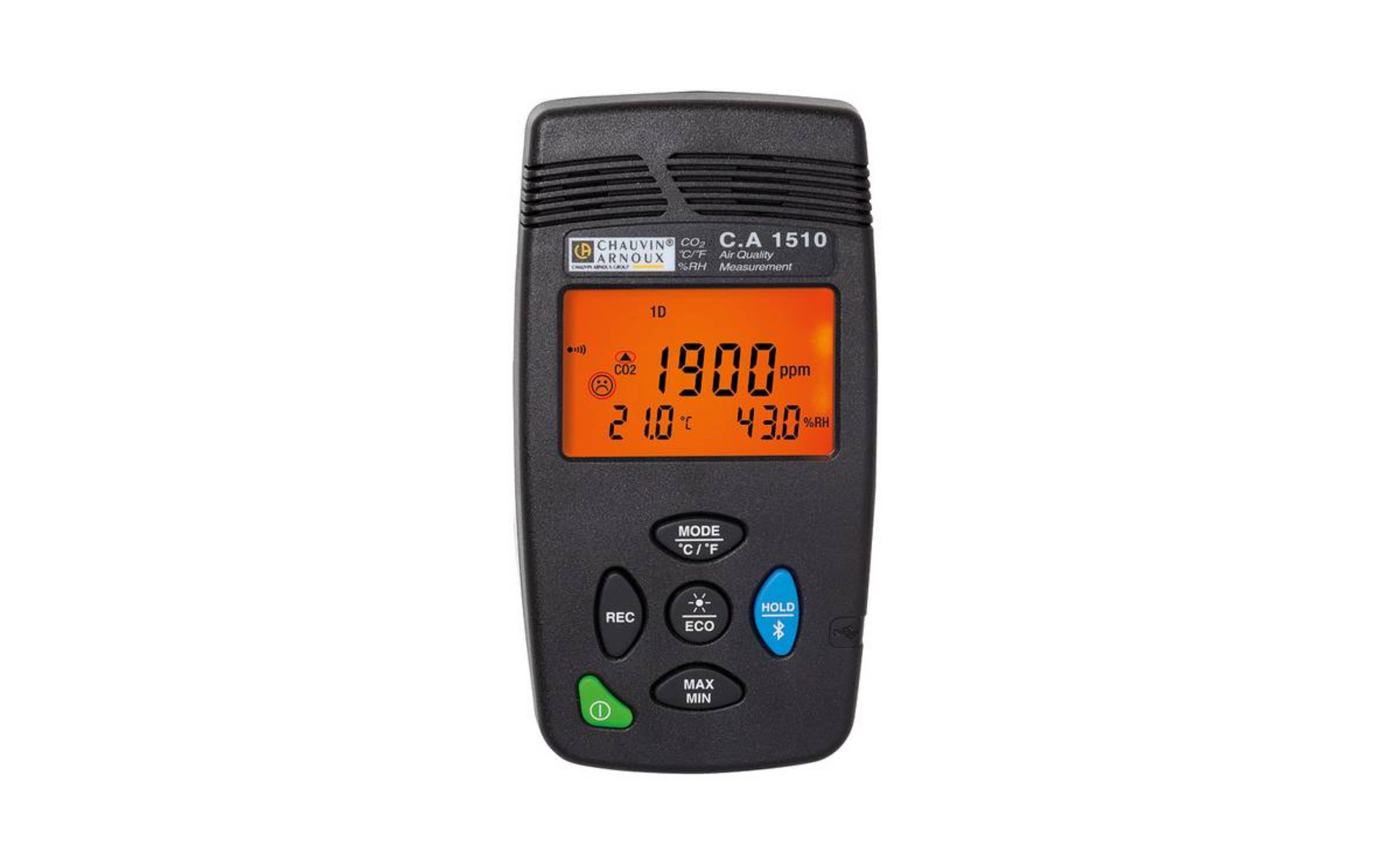

In addition to its portable function, the simple, user-friendly CA 1510 iscapable of recording the parameters measured and monitoring air qualitycriteria based either on the level of CO2 or on a combination of the threephysical quantities measured.

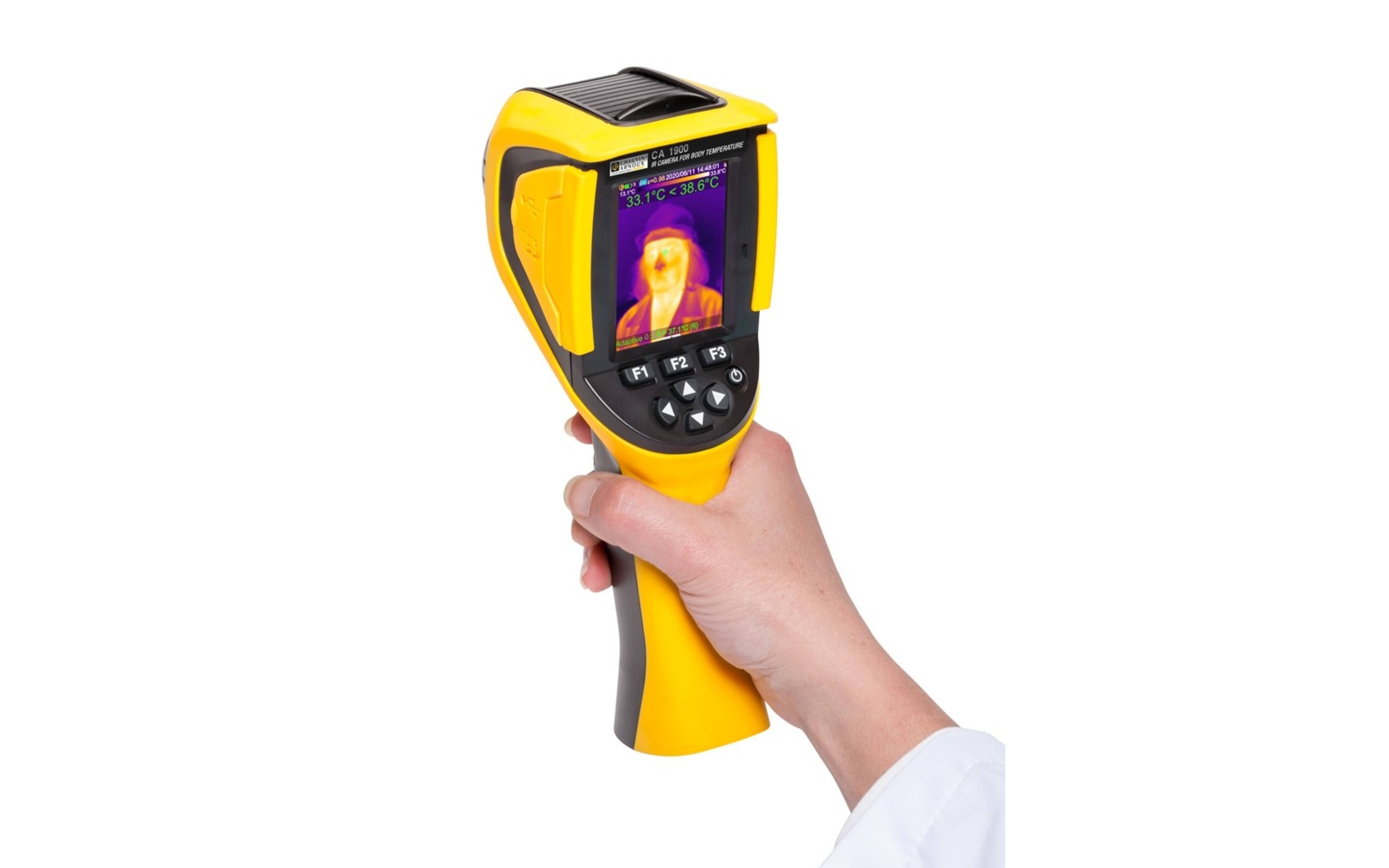

Detect any abnormal fever with the CA 1900 camera
A clear view of your electrical network - immediately

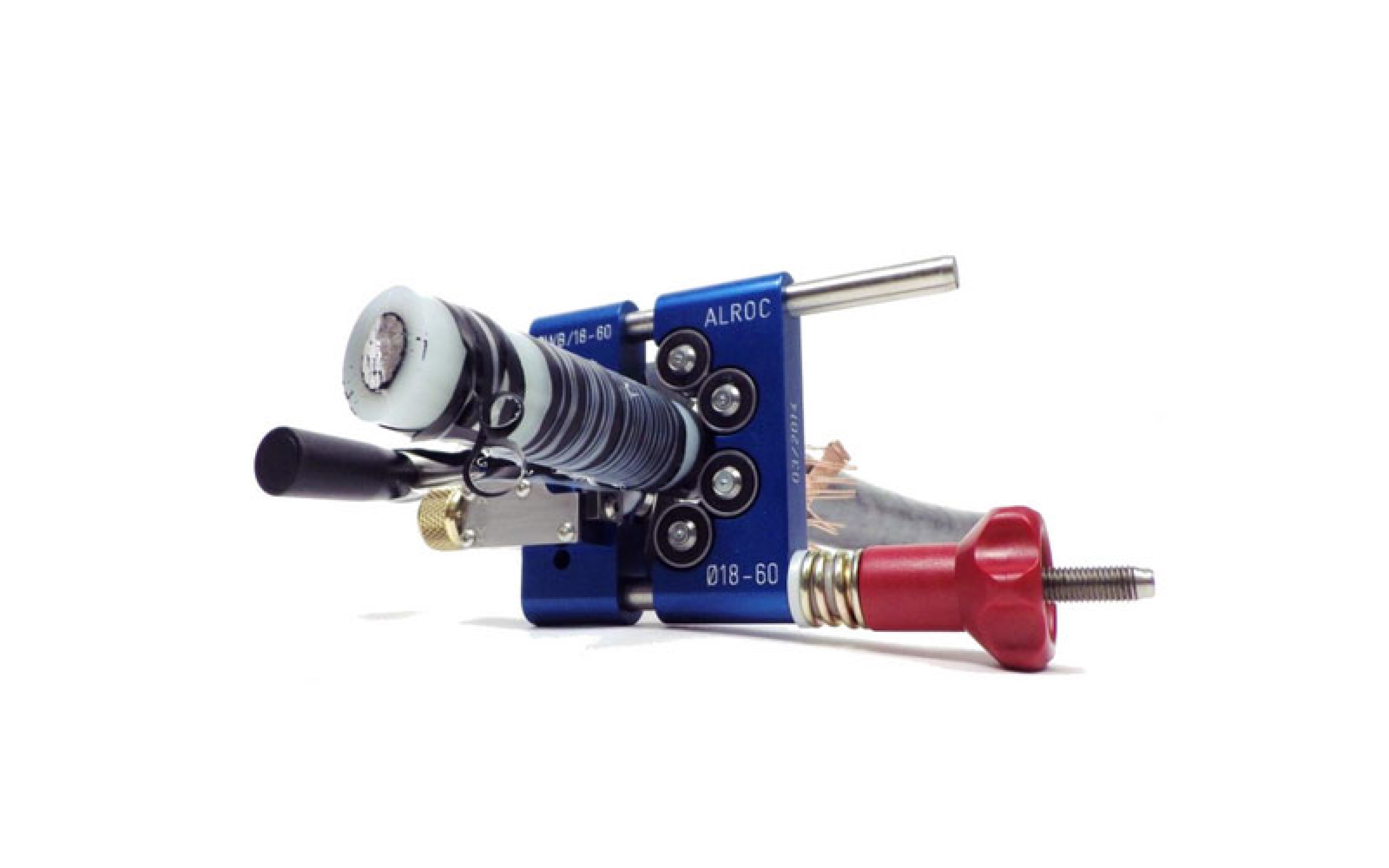

The SRC enables the user to score the peelable semiconductor without touching the primary insulation located underneath, in order to peel it off manually. Must be user with the following tools : MD1+/25, MF3/40, MF3/60
The pliers RPG3/C20-l222830 enables the user to make a circular and longitudinal cut in order to remove cable's outer sheath
Cutting capacity : diameter 100 mm
Metal armour : all except round wires
Maximum section: 3 x 240mm2 copper
Cutting force : 13 000kg
24V DC operation
Autonomy : 20 cuts
Dimensions L x W x H : 628x165x328 mm Weight : 14 Kg
Concentrated advantages!
Flexible use thanks to its focus-free capability with 38° x 28° fi eld of view
Unprecedented! 9 hours’ continuous use!
Recovery of data from other measuring instruments (current, humidity, dew point, etc.)
Practical: voice recordings, enhanceable integrated emissivity table, organization of folders by site"
For your energy audits in the field
With their ergonomic design suitable for all types of cabinets, the PEL loggers provide all your power and energy measurements simultaneously.
In their site-proof casing suitable for the severest measurement conditions, the C.A 6505, C.A 6545, C.A 6547 and C.A 6549 megohmmeters offer you the best in insulation testing in terms of accuracy and expertise. As soon as they are connected, they measure voltages, frequencies, capacitances and residual currents on the installation or equipment to be tested.
With their multiple functions, they not only qualify the insulation measured, but also ensure genuine preventive maintenance.
3 testers in one: resistivity, earth, coupling
Validation of measurement through automatic check:
Designed for «proving dead» on high voltage distribution system between 1 kV and 69 kV (voltage ranges calibrated according to IEC recommendations)
The MTag detects any nominal voltage present on a overhead line or in a substation. The MTag meets all the expectations and wishes expressed by users and experts in recent years.
STANDARD : IEC61230
USE : For cylindrical conductors and bars
TECHNICAL SPECIFICATIONS S1560HE

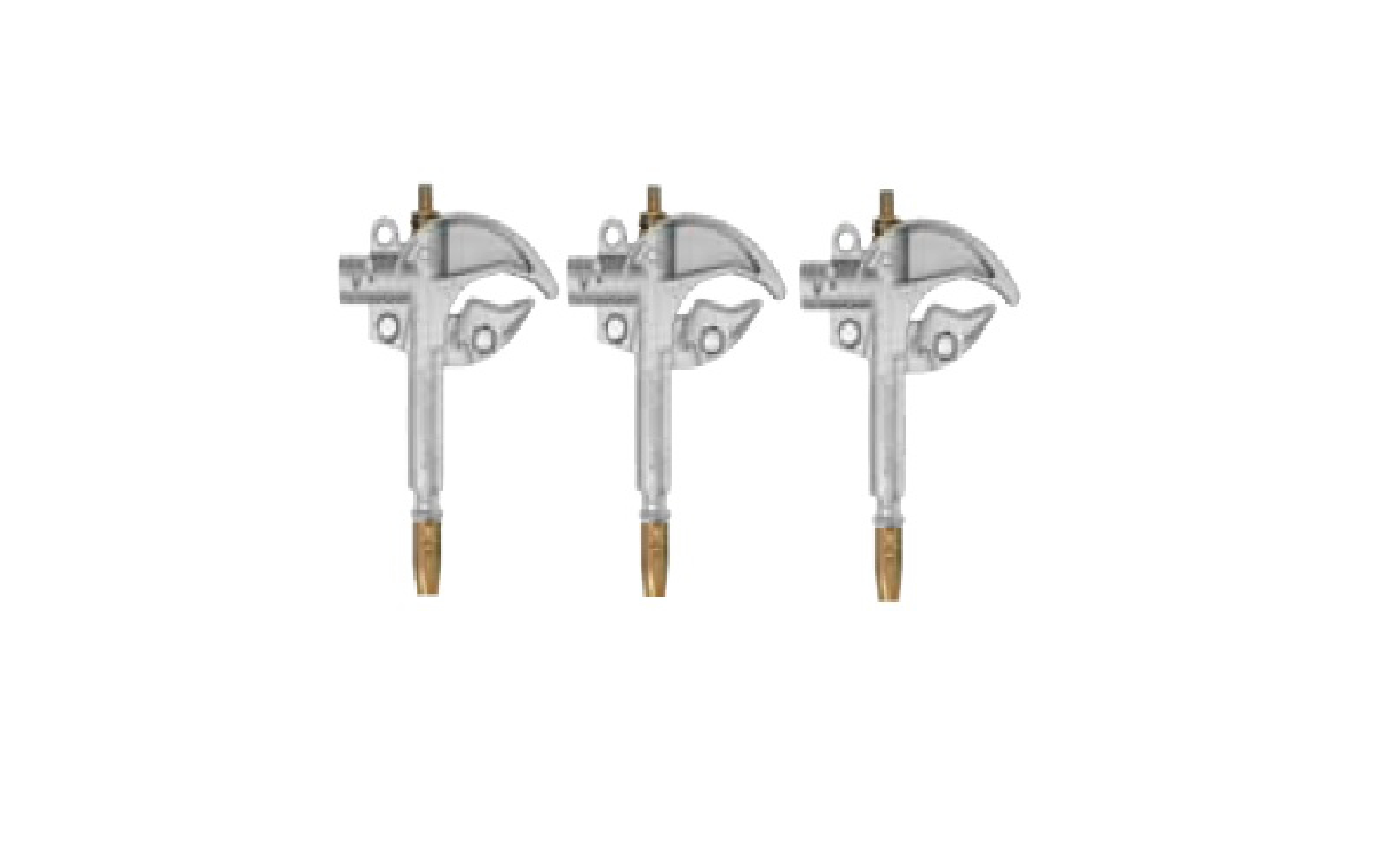

Portable earthing set for 150 KV HV – 3 phases overhead lines
Each set includes :

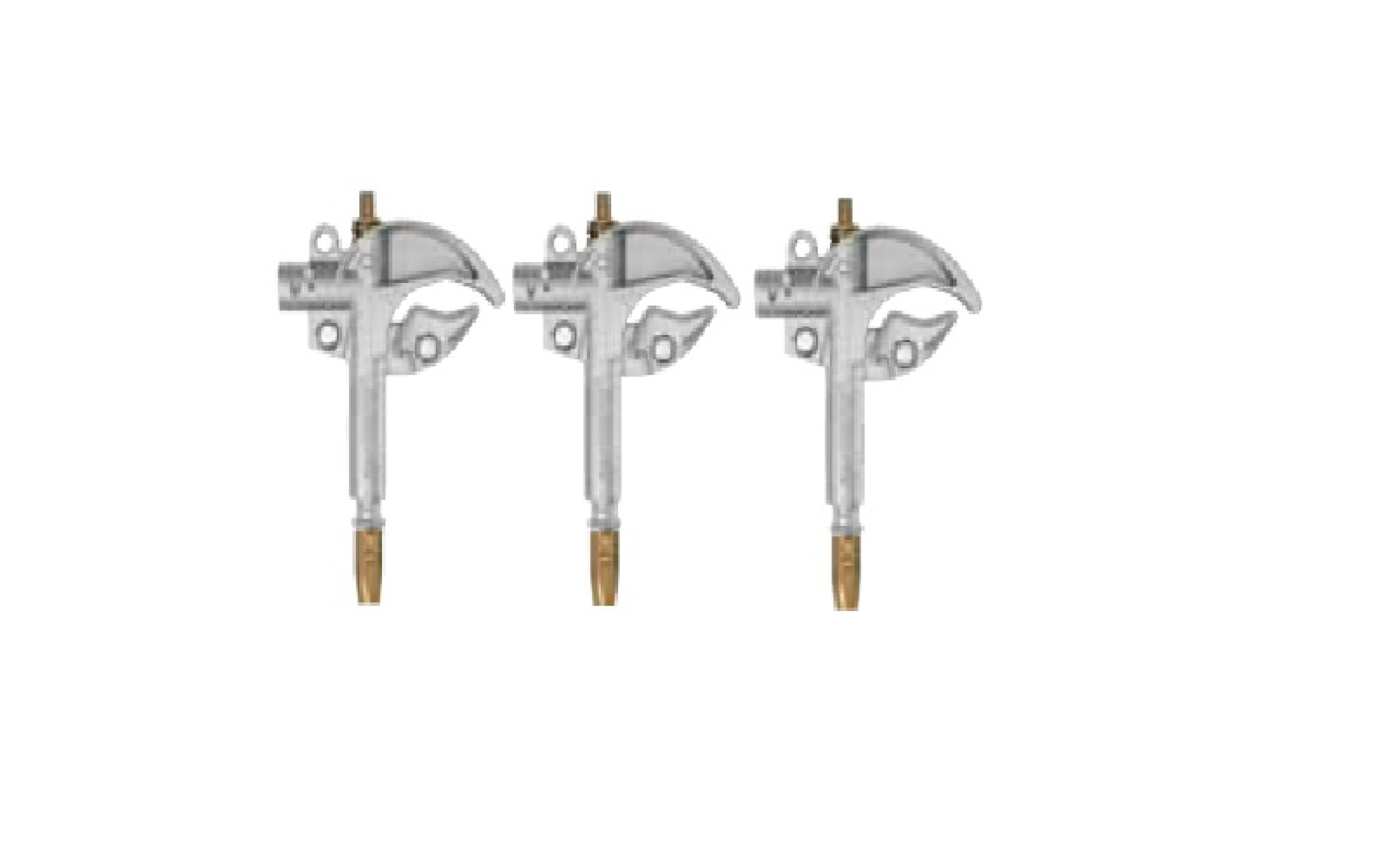

Portable earthing set for 70 KV HV – 3 phases overhead lines
Each set includes :
STANDARD(S)
1000V CAT IV - IP65
USE
UNITAG is a unipolar detector designed to test the presence of phase on insulated or bare LV conductors. The level of detection is indicated by a LED bargraph and a beeping sound which speed increases as device approaches a live source."
STANDARD(S) The telescopic stick complies to both European and American standards : ASTM F 1826, ASTM F 711, IEC 62193, IEC 60855-1
AFHV8 garments offer protection from the thermal effects of short circuit electrical arcs, with an ATPV that does not exceed 8 cal/cm². These suits are designed for prolonged use throughout the day, and are recommended for operators working on or close to live electrical installations.
AFHV8 clothing are suitable for use in explosive atmospheres (ATEX).
AFCOM10 coveralls offer protection from the thermal effects of short circuit electrical arcs, with an ATPV that does not exceed 10 cal/cm². These garments are designed for prolonged use throughout the day, and are recommended for operators working on or close to live electrical installations. AFCOM10 clothing are suitable for use in explosive atmospheres (ATEX).

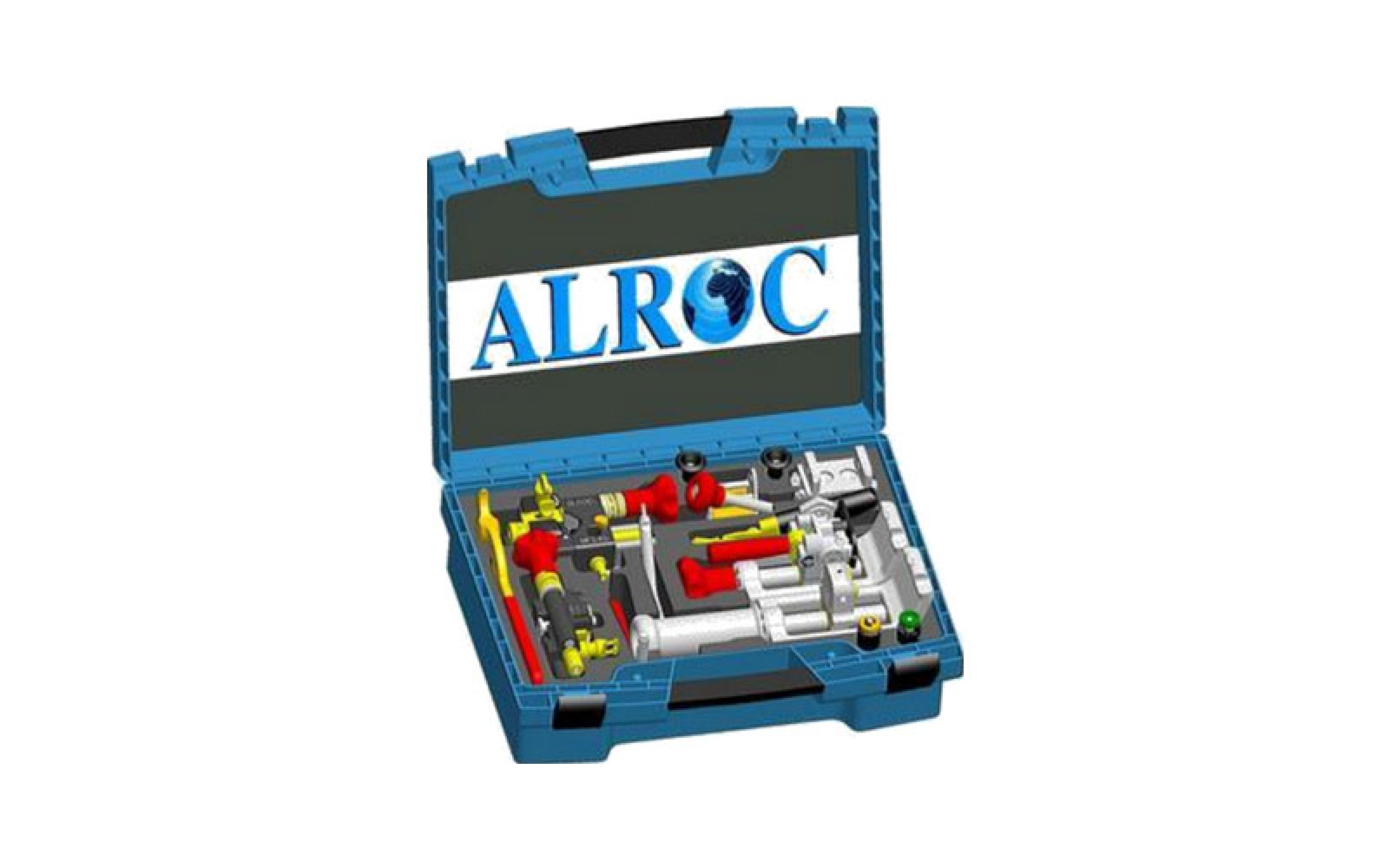

"Full kit for distribution underground cable 50 mm² up to 240 mm²
Tools included in the kit CNPT/240-1-MV-NG enable the user to splice each layer of distribution underground cable ranging from 50 mm² up to 240 mm² in 12/20 kV, prior to junctions or terminations installation."
IPS2 is a fault detector for overcurrent and directional earth faults that indicates using its relay output. Supplied by internal supercapacitors, it provides local indication using an external LED for 24 hours without external power supply.

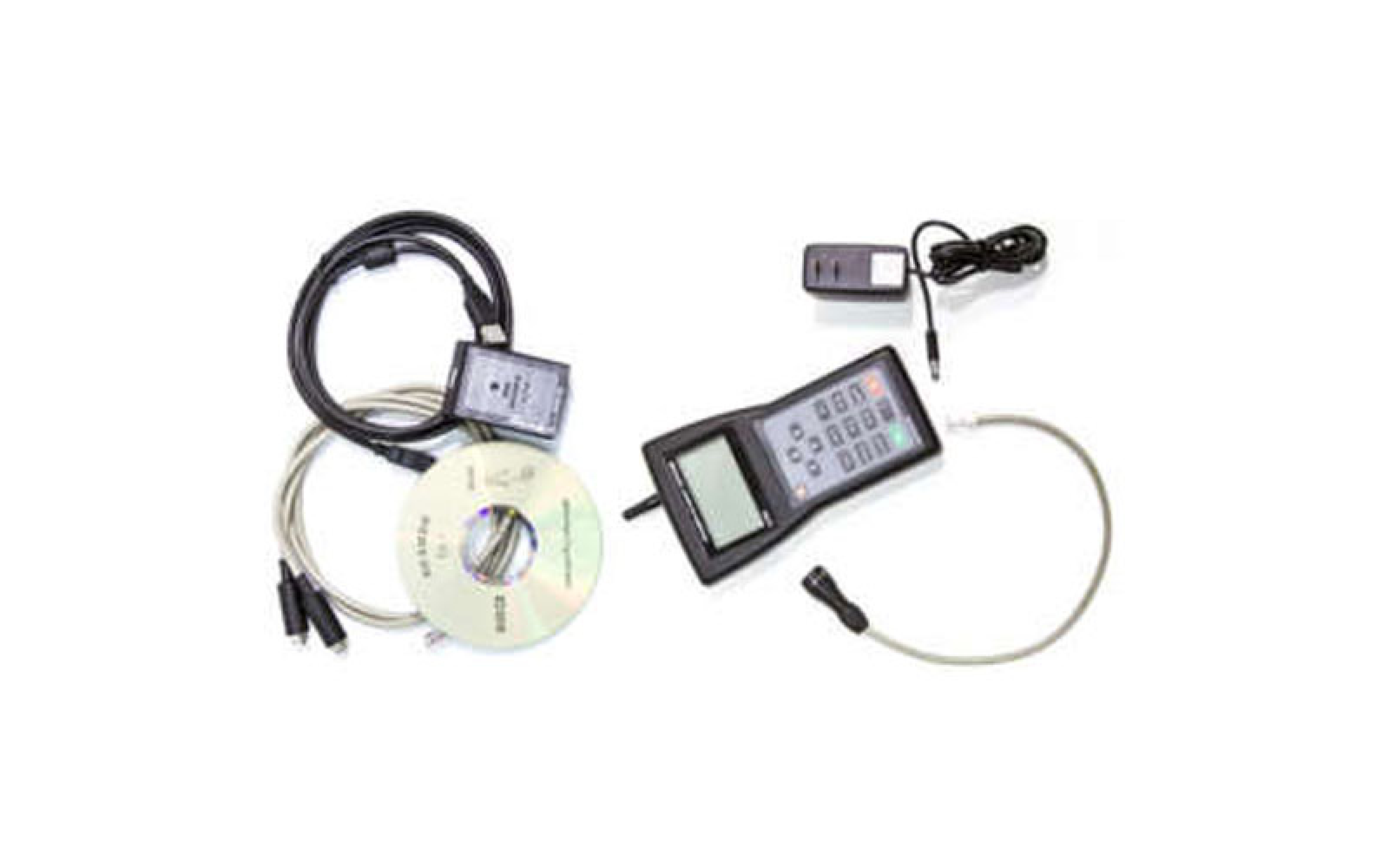

"The data collector FWT200 for FCI – SIX has been developed to offer excellent operating features, low maintenance, configuration flexibility and vandal-resistant for pole installation.
The data collector allows managing nine (9) FCIs or SIX-DG, and reporting the information acquired through them to a web-server. For this propose, it uses a radio-frequency link for communication with FCI or SIX-DG and a GPRS link for the server communication."
The DELTA PLUS is a configuration device for the SIX-DG electronic sectionalizer; it can query stored data and change configuration parameters using wireless or cable connection in a simple and versatile way. It does not require external power supply or any additional device.

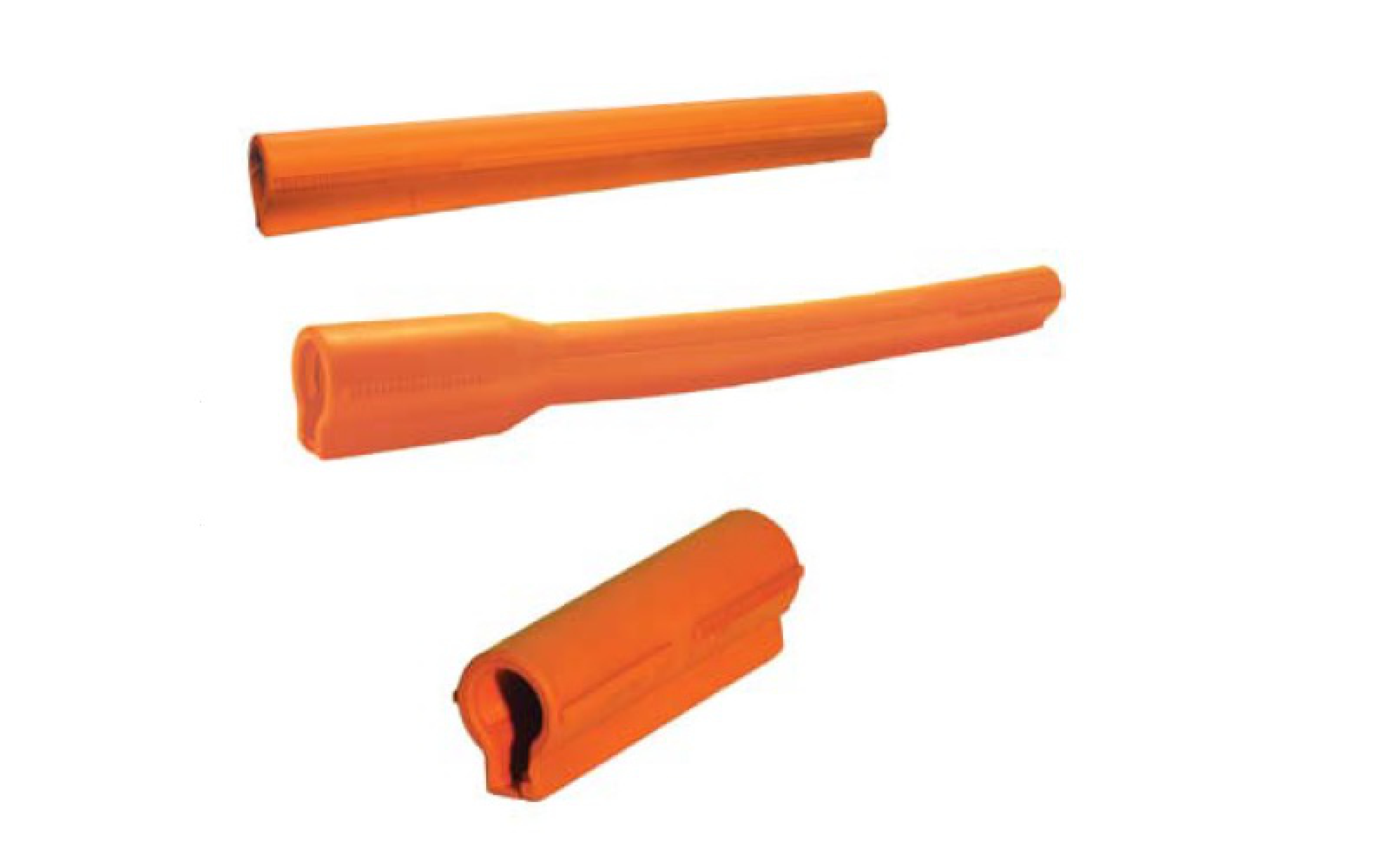

Conventional Style Line Hose is available in orange Type II SALCOR®. SALCOR remains flexible even in cold weather and it is not damaged by ozone or ultraviolet rays. Each line hose has Salisbury’s RIB-GRIP Locking System. The straight or connector end style is available in three sizes: 1” and 1.25” I.D. rated at 17kV, Class 2 and 1.5” I.D. rated at 26.5kV, Class 3.
Straight style SALCOR hose is also available in 2” or 2.5” I.D. rated at Class 3.
Conventional Line Hose Connectors are made from Type II orange SALCOR and can be used on 1”, 1.25”, or 1.5” I.D. conventional line hose. Toconnect 2” and 2.5” I.D. conventional line hose, use the SU System Connector. The tightest grip in the industry.
CHARACTERISTICS
WORKING METHODS
Hot stick, rubber glove, bare hand methods and their combination.
FIELD OF USE
Bare overhead network
CHARACTERISTICS
WORKING METHODS
Hot stick, rubber glove, bare hand methods and their combination.
FIELD OF USE
Bare overhead network.
CHARACTERISTICS
Overall Dimensions :
WORKING METHODS
Hot stick, rubber glove, bare hand methods and their combination.
CHARACTERISTICS
WORKING METHODS
Hot stick, rubber glove, bare hand methods and their combination
FIELD OF USE
Bare overhead network
CHARACTERISTICS
CHARACTERISTICS
WORKING METHODS
Hot stick, rubber glove, bare hand methods and their combination.
FIELD OF USE
Bare overhead network
CHARACTERISTICS

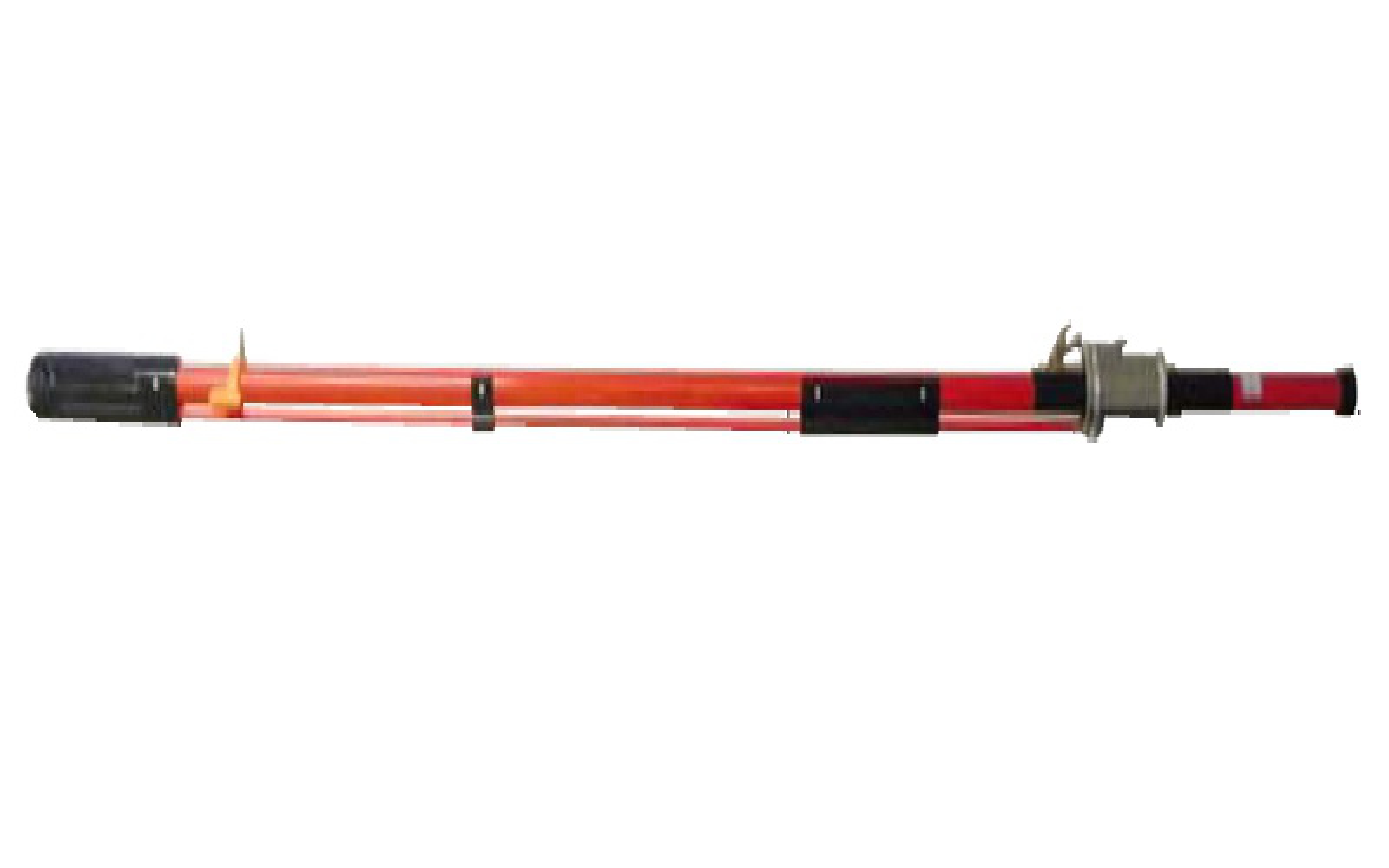

Insulating foam filled tube and insulating operating rod, orange colour.
Pole head : synthetic non insulating material.
Hook and mechanism, metal protected against corrosion.
The 3.2 m and 3.8 m hook poles (already in use or new) can be equipped, on demand, with a system for rapid decoupling of the insulating operating rod.
This decoupling device, made of synthetic material, that can be dismantled to allow the removal of the insulating operating rod, is placed 0.95 m from the pole head.
CHARACTERISTICS
Base with adjustable feet and sections with fixed cradles : metal protected against corrosion.
Sections : metallic or synthetic material reinforced with glass fibre, orange coloured cradles fixed or removable
Straps :
synthetic material with a buckle, a ring and a snap hook or a with a turnbuckle in metal protected against corrosion, fixed at about the level of the cradles.

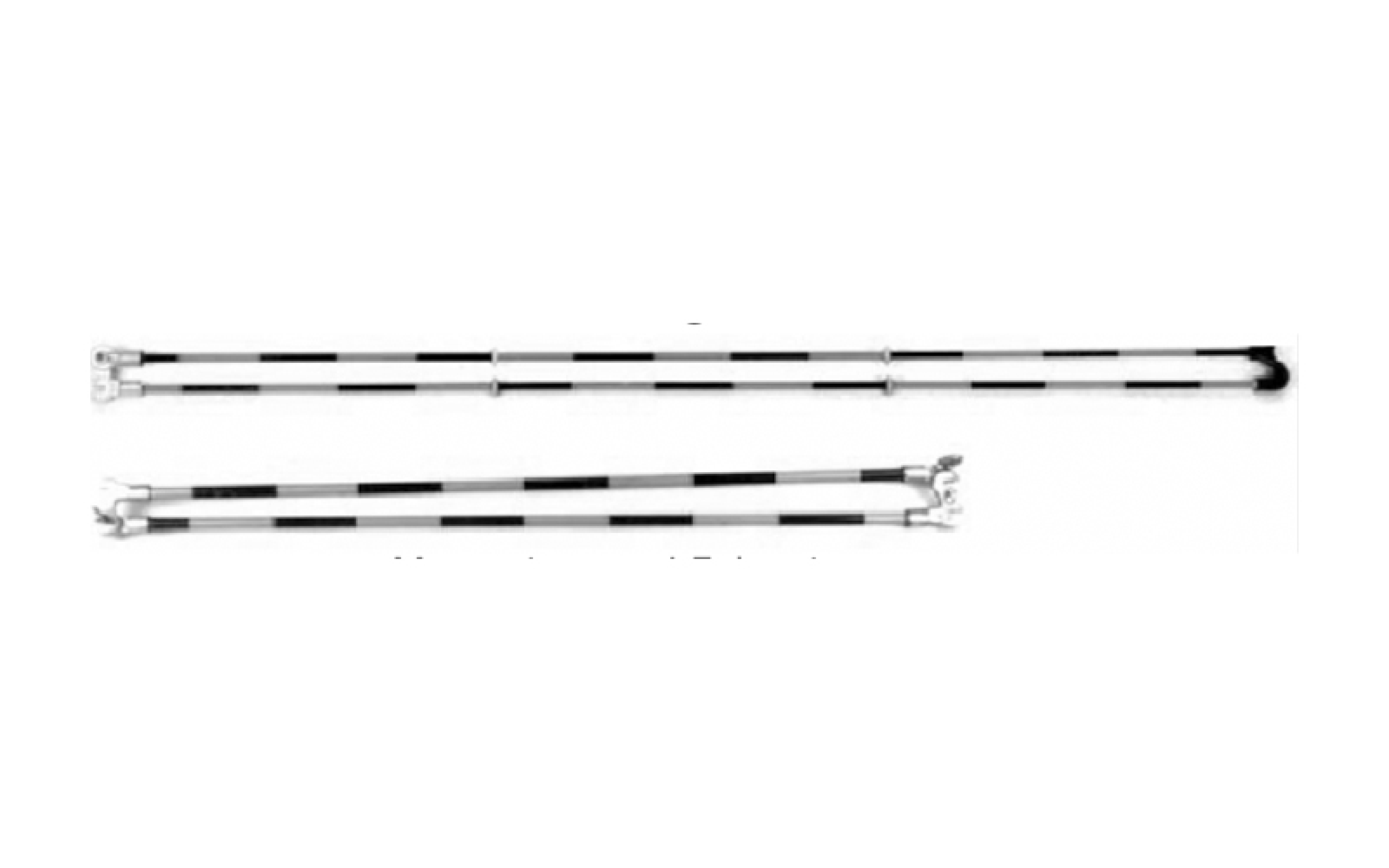

The measuring rod is used to measure intervals lenghts located in relation to live parts. It can be held by the hand.

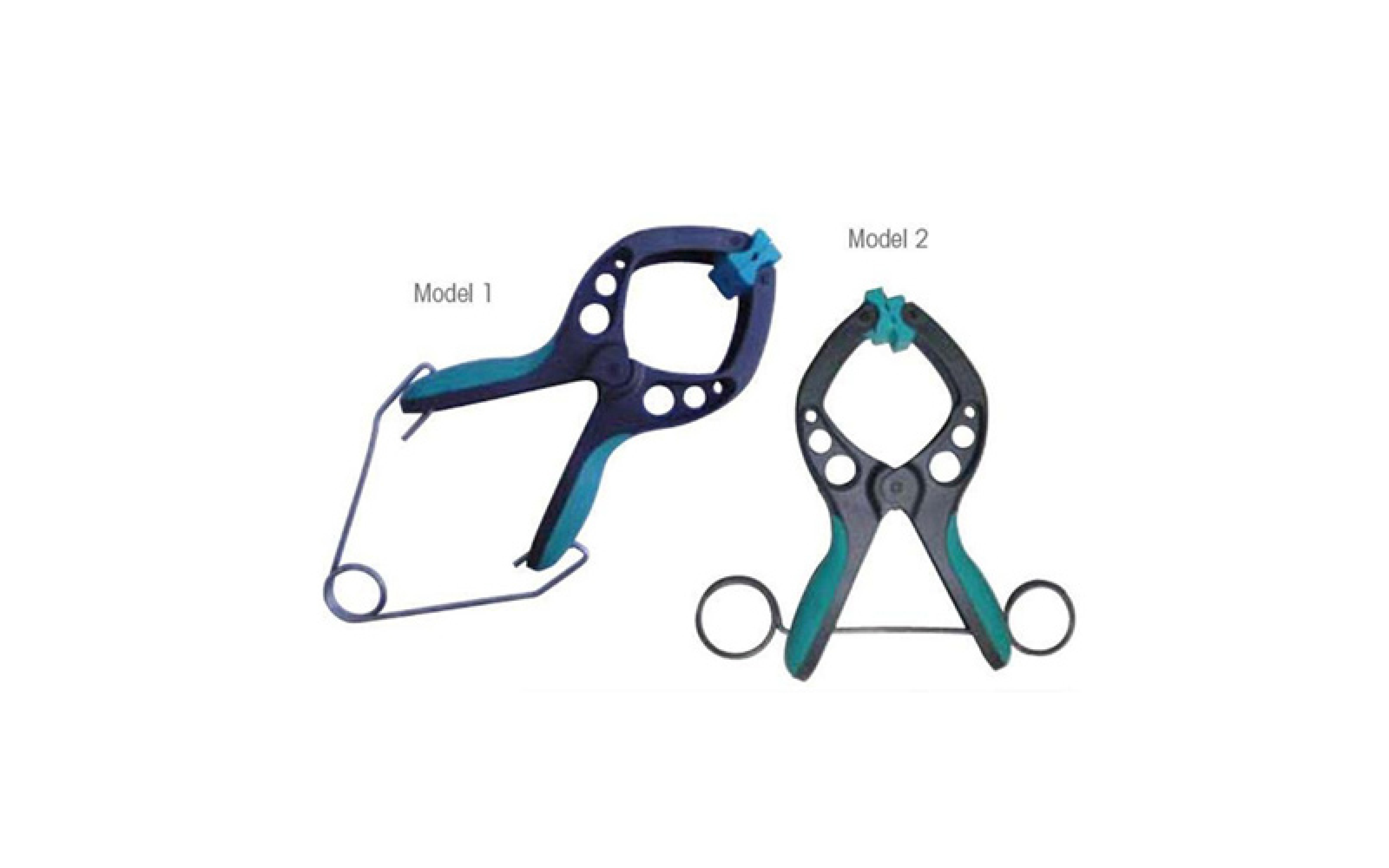

Clamp made of Plastic.
Spring made of metal protected against corrosion.
Overall dimensions : Model 1 :180 x 160 x 35mm ; Model 2 : 128 x 120 x 35 mmApproximate weight : 0.1 kg.

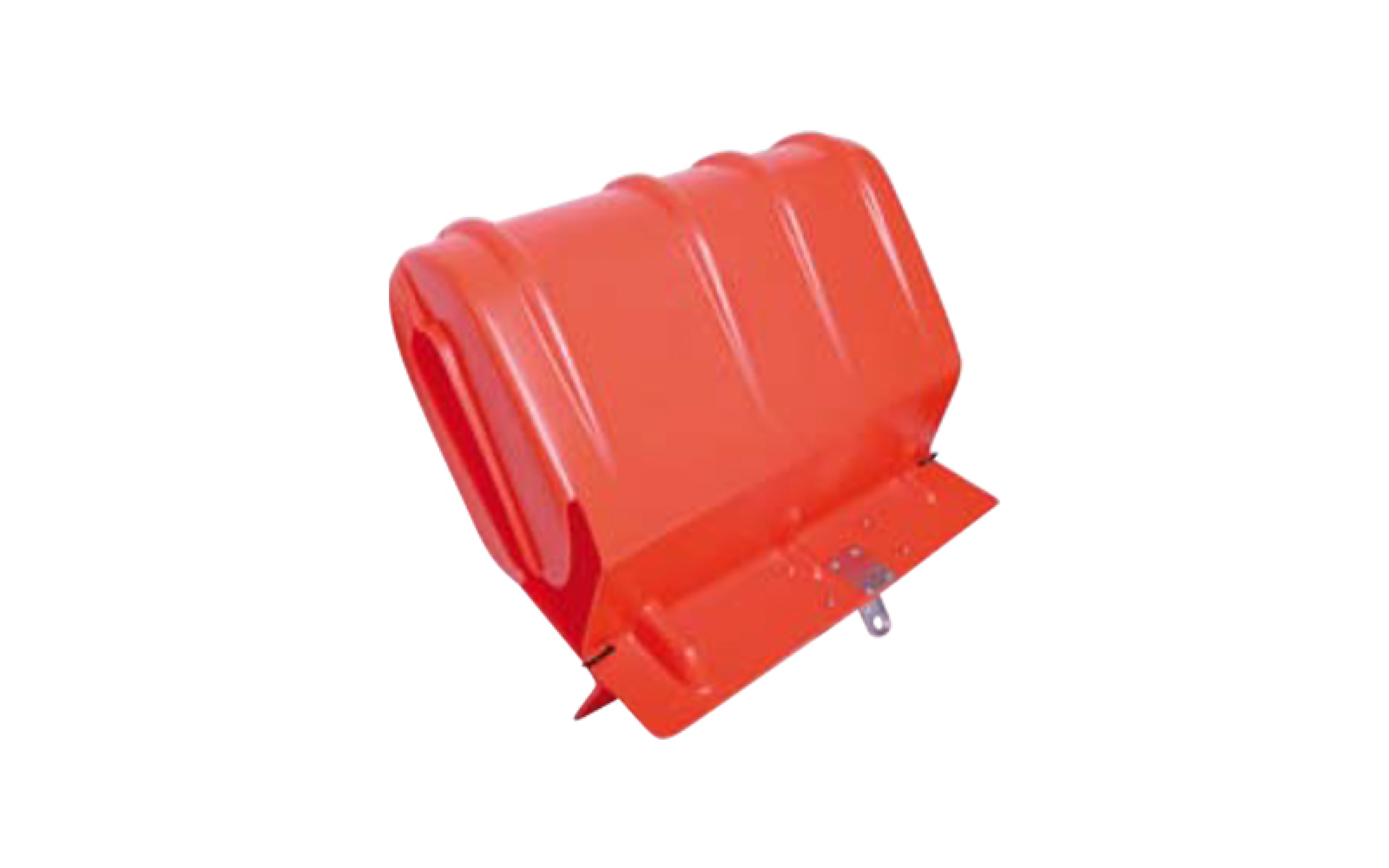

TENSION STRING COVER red color , synthetic body Metal griping rings protected against corrosions
Dimension : 700 X 670 X 270
Weight : 5.3 Kg
The PIN INSULATOR COVER is used to permit the operator to reduced the distance between his working area and the bare conductive parts covered by the protective covers. It is fixed onto the two conductor cover, on which it rests, and is above the pin insulator.
It can also be used to avoid accidental contact with items which have different potential.
The insulation is guaranteed for the most part by the band of air which is created by the assembly of the covers.
The presence of an insulator equipped with a clamp or a binding wire attachment does not reduce the amount of protection. In all cases, the presence of accessories near the insulator, which project more than 40 mm on the conductor, annuls the usage of this cover.

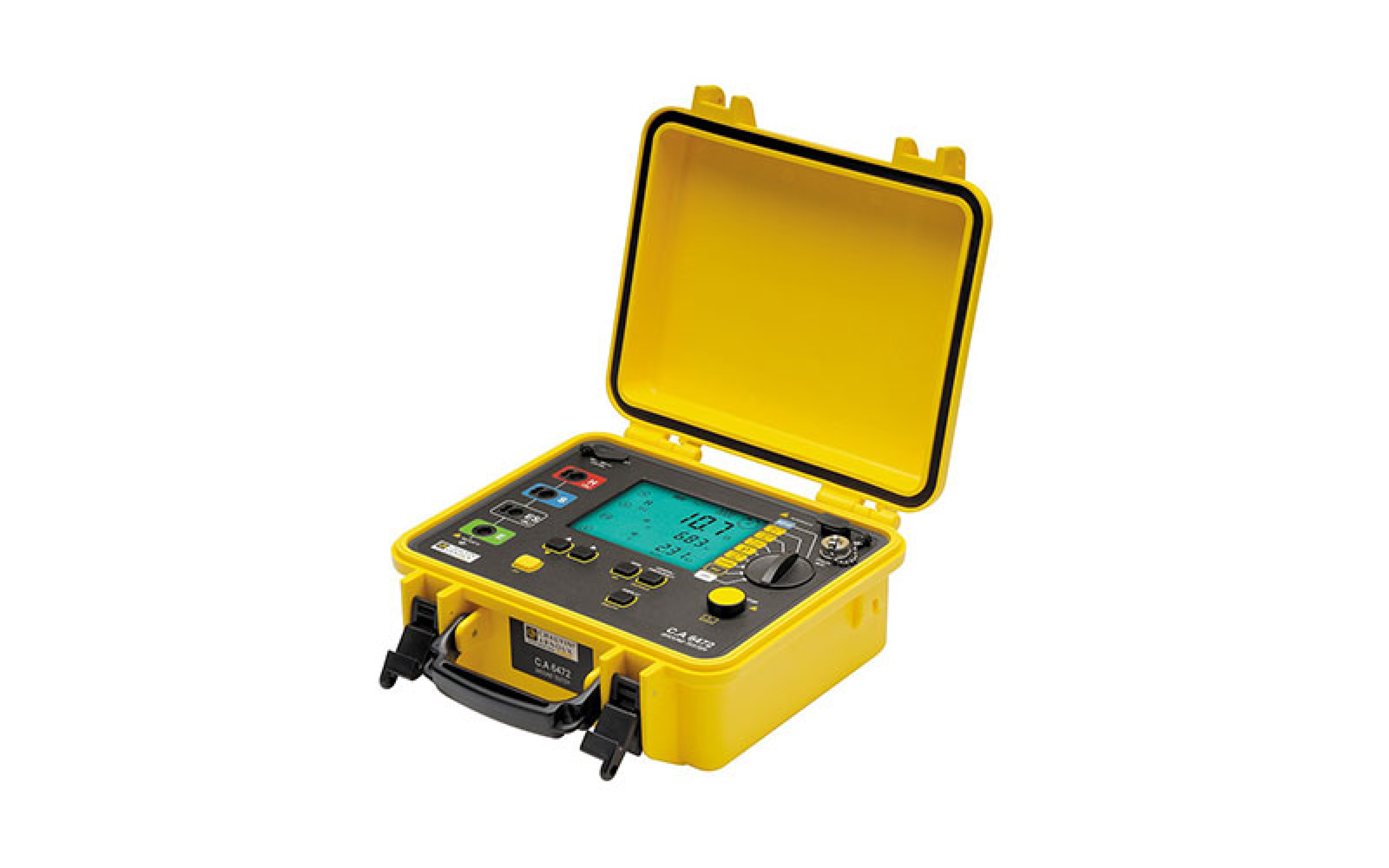

Reliable, accurate and quick for comprehensive earth testing
Multifunction :
Our indoor current transformers can be broken down into the following 3 ranges:
This range can be split into 2 parts:

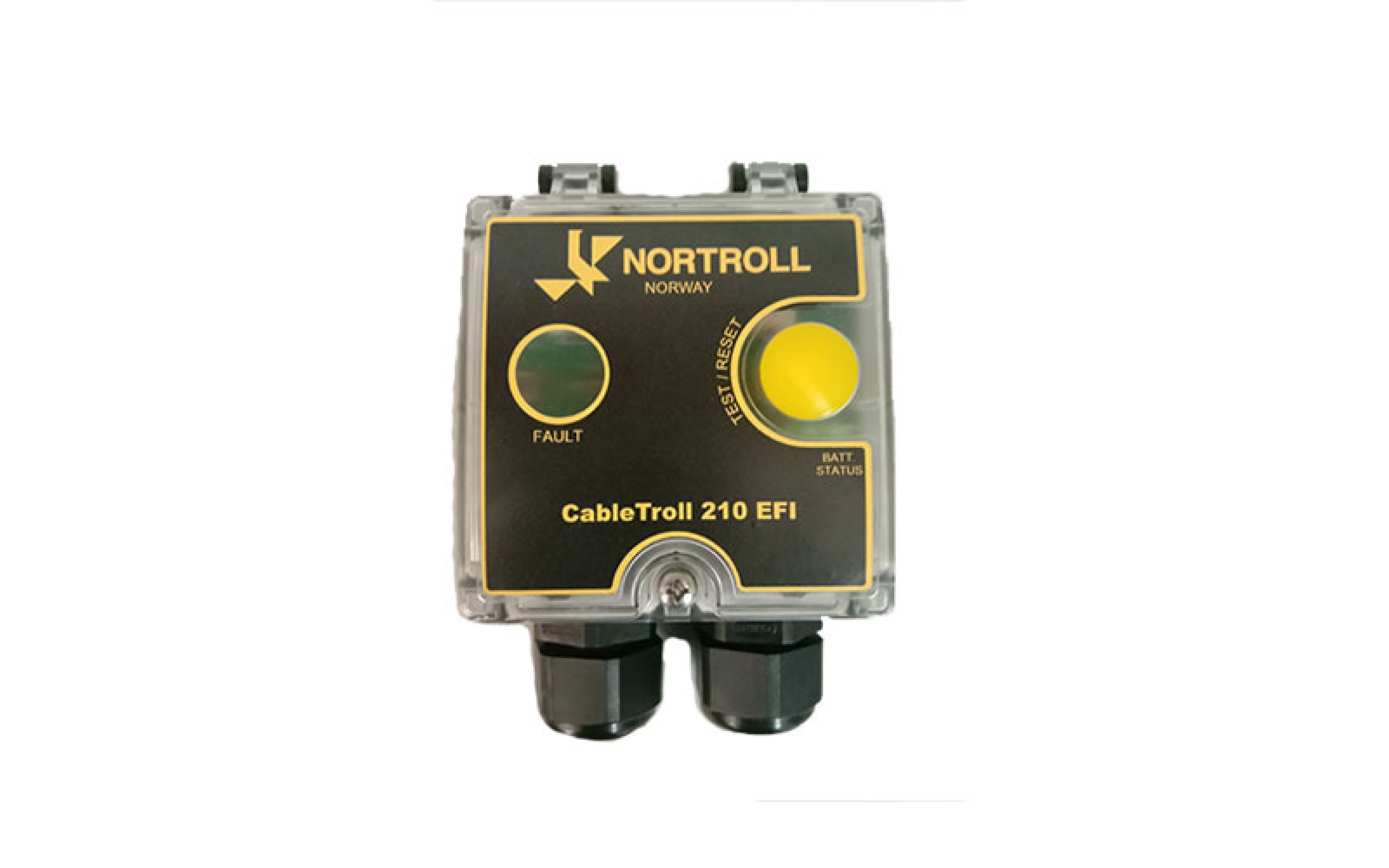

The CableTroll 210 is a fault current detector for the underground medium voltage distribution network (6-36kV). It is used to detect earth faults according to the functional principles in chapter 3. It can be installed on most types of cable terminations and suitable for use in tropical weather conditions with high humidity of 65% to 95%. The CableTroll 210 will indicate earth faults locally by a flashing diode, and remotely through a relay contact.
The FDP-15 can be used as a radio interface to a collector or fault indicator when sending configuration data to the unit.
FDP-15 have also a memory where parameters for different types of fault indicators and collectors can be stored. The memory can store one set of parameters for one type of field device of the following type;
Com. Unit for Integration With NorTroll or Third Party RTU
Communicates with 1 – 12 line mounted indicators Communicate with the RTU on MODBUS
Output Messages
Short range radio; 2,4 GHz
Range up to 30-50 meter Remote Indication
12 VDC power
Communication Between Linetroll and Comtroll 115
The rotary switch on the ComTroll 115 called “ADDRESS” should be set to the number of indicators used in this location, in this case ‘3’.
Able Integration with any type of RTU Modem’s supported by Digital Input and Output.
The indicators will in PtP mode operate one individual relay output on the ComTroll 115C each. The Communication failure/Low Battery relay on the ComTroll 115C will be activated if one or more the three indicators send this message.
Bicolor chlorinated long composite gloves for medium voltage live working operations (gloving method). Integrated mechanical protection: no need of leather protector. Bell cuff and ergonomic hand shape. One piece only, with excellent leakage current properties (Category F): it is possible to work in wet conditions (if allowed by local regulations and work practices).

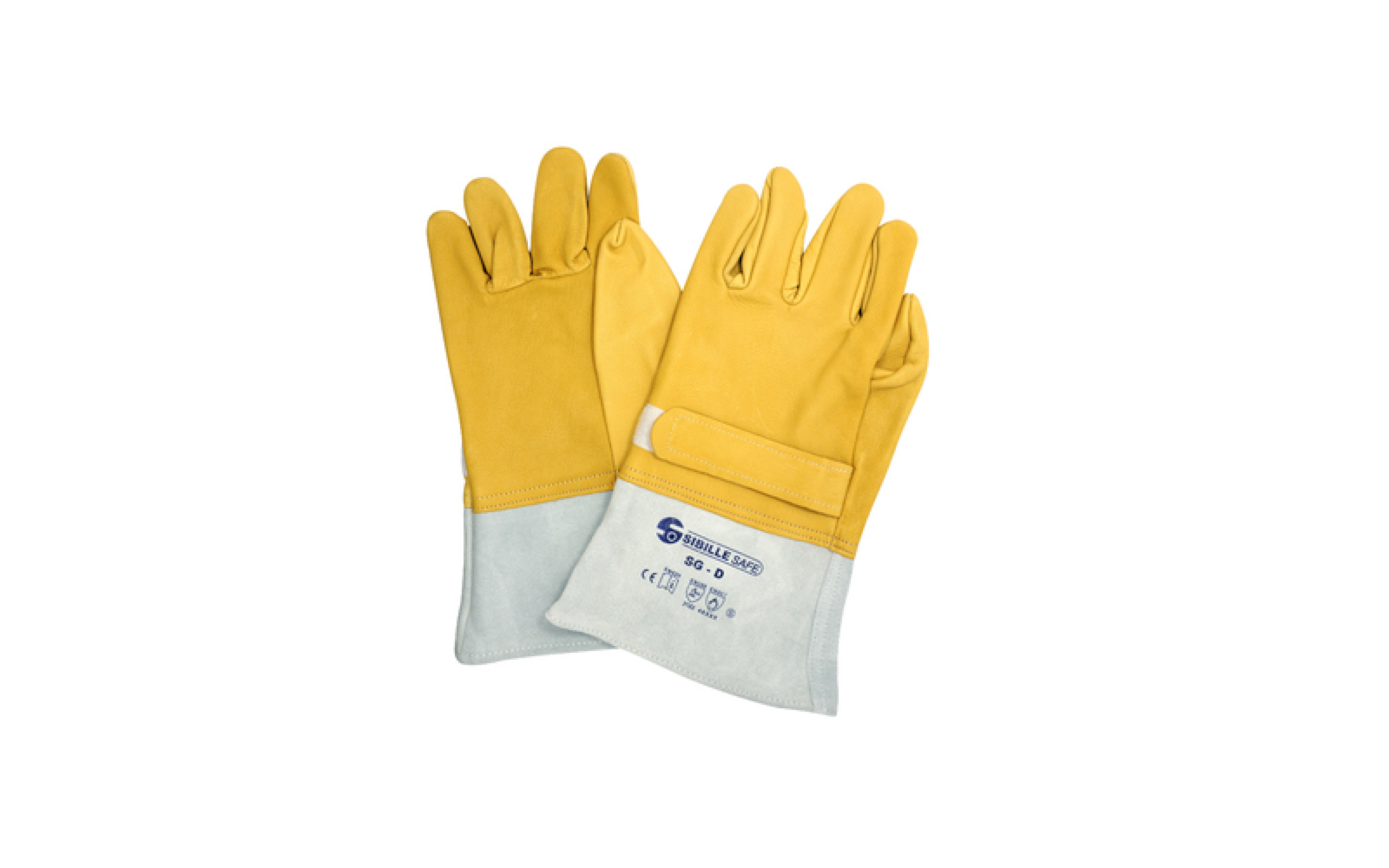

Soft leather gloves
EN 420 / EN 388 (mechanical protection : Abrasion 3 - Slicing 1 - Tear 3 - Perforation 3)
The electrical safety kit allows to assist people in presence of electrical hazards, up to 25 kV network with model VES25 or up to 36 kV network with model VES36.
This kit is particularly suitable for the following situations :
Electrician Helmet with integrated face shield, ATPV 8,4 cal/cm2
Safety helmet with integrated face shield for electricians
Composite insulating gloves with arc flash protection

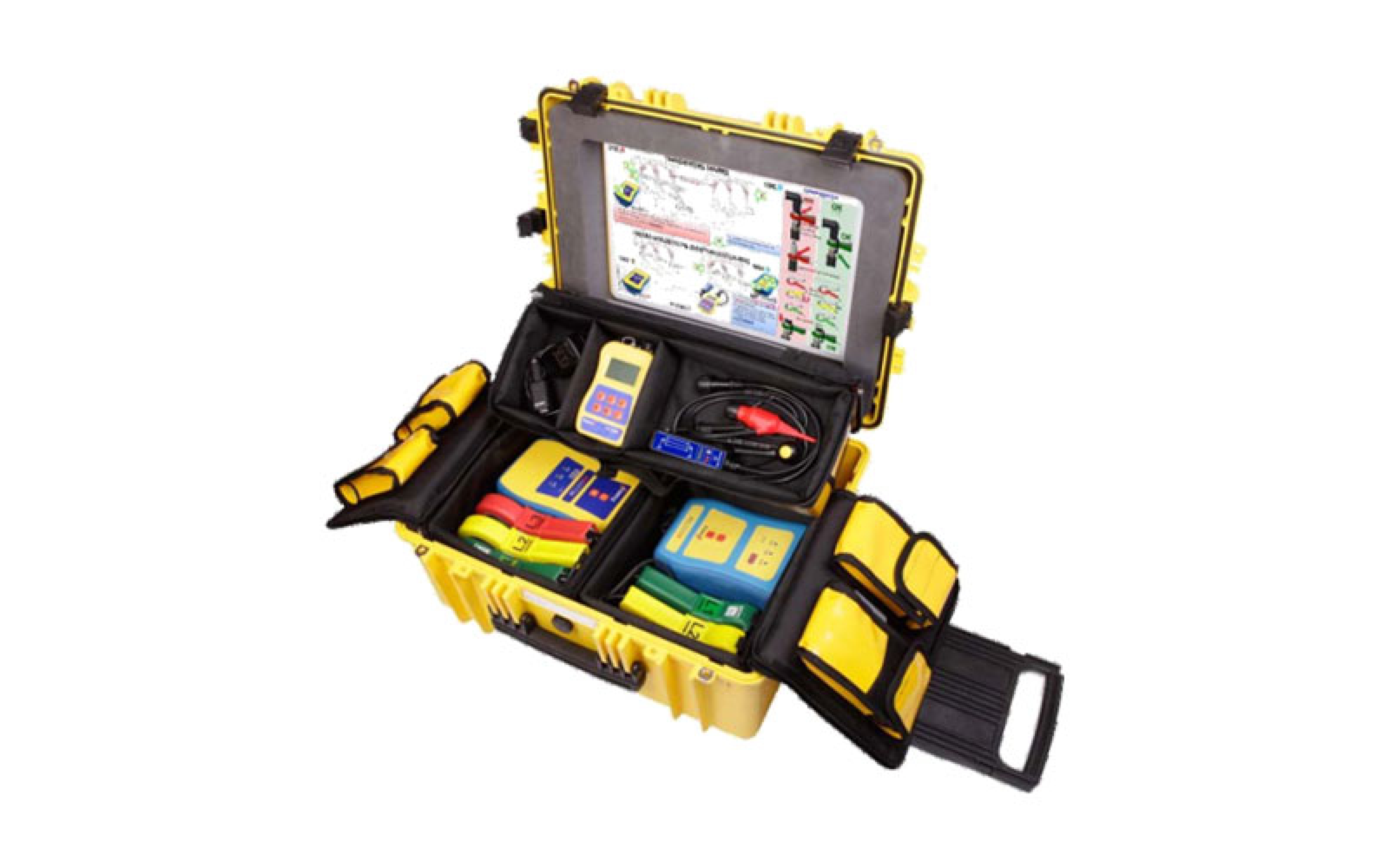

Cable and phaser identifier for de- energized three phase cables
Wireless phase comparator, from 4 kV to 500 kV
An alternative to the voltmeter for checking the phase coincidence in a network before looping.
The PDS allows online partial discharge detection on underground cable accessories and equipment for safety and maintenance purposes. This compact and lightweight instrument is battery operated and it has a an autonomy of 30 hours. The Partial Discharge intensity level is displayed on the instrument with the bargraph.

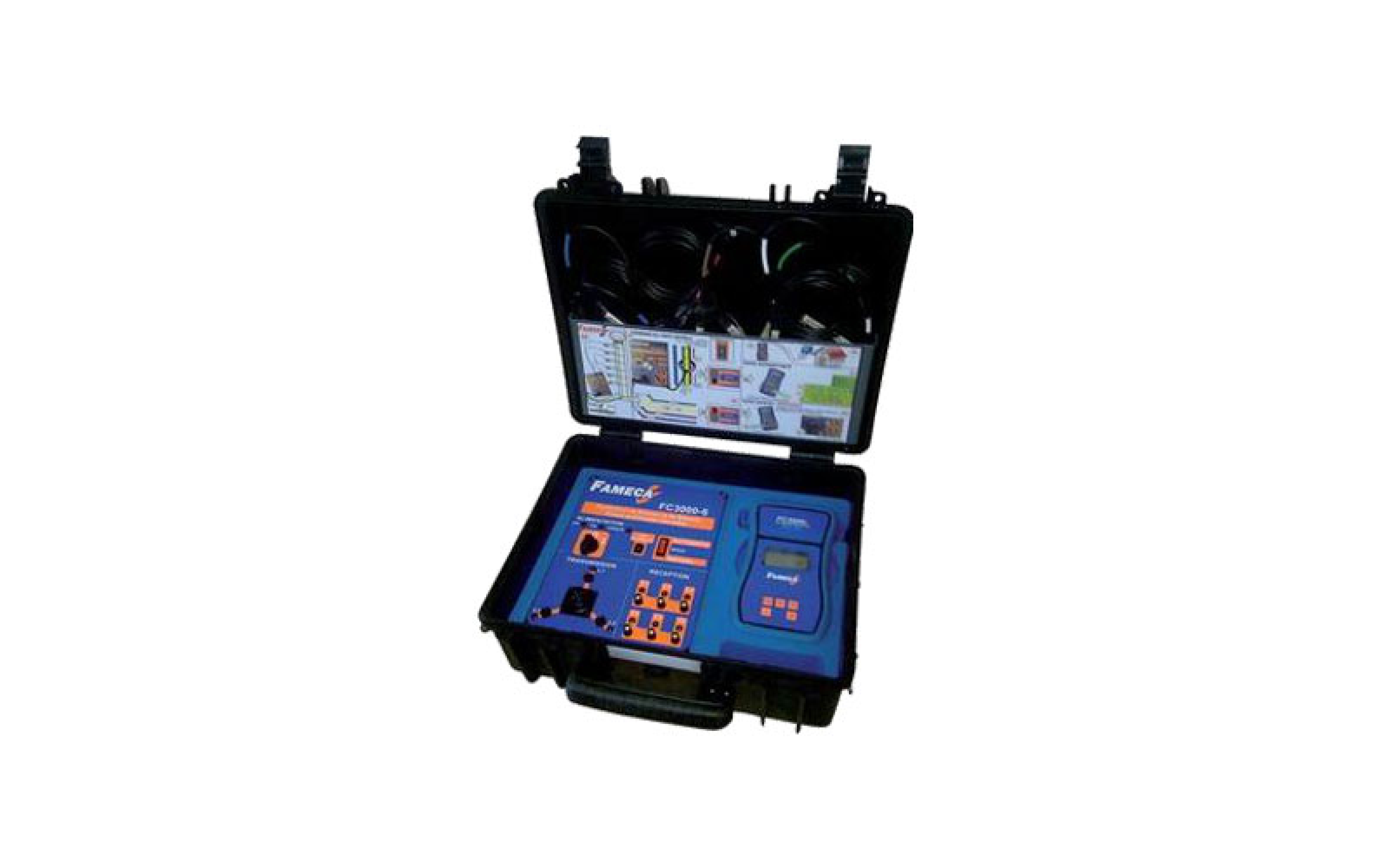

Live LV feeder and cable identifier - 6 to 12 feeders
ARC40 (40 cal/cm2) Double Certification Fabric + Garment
ARC53 (53 cal/cm2) Double Certification Fabric + Garment
Premium
Comfort
Premium
Comfort

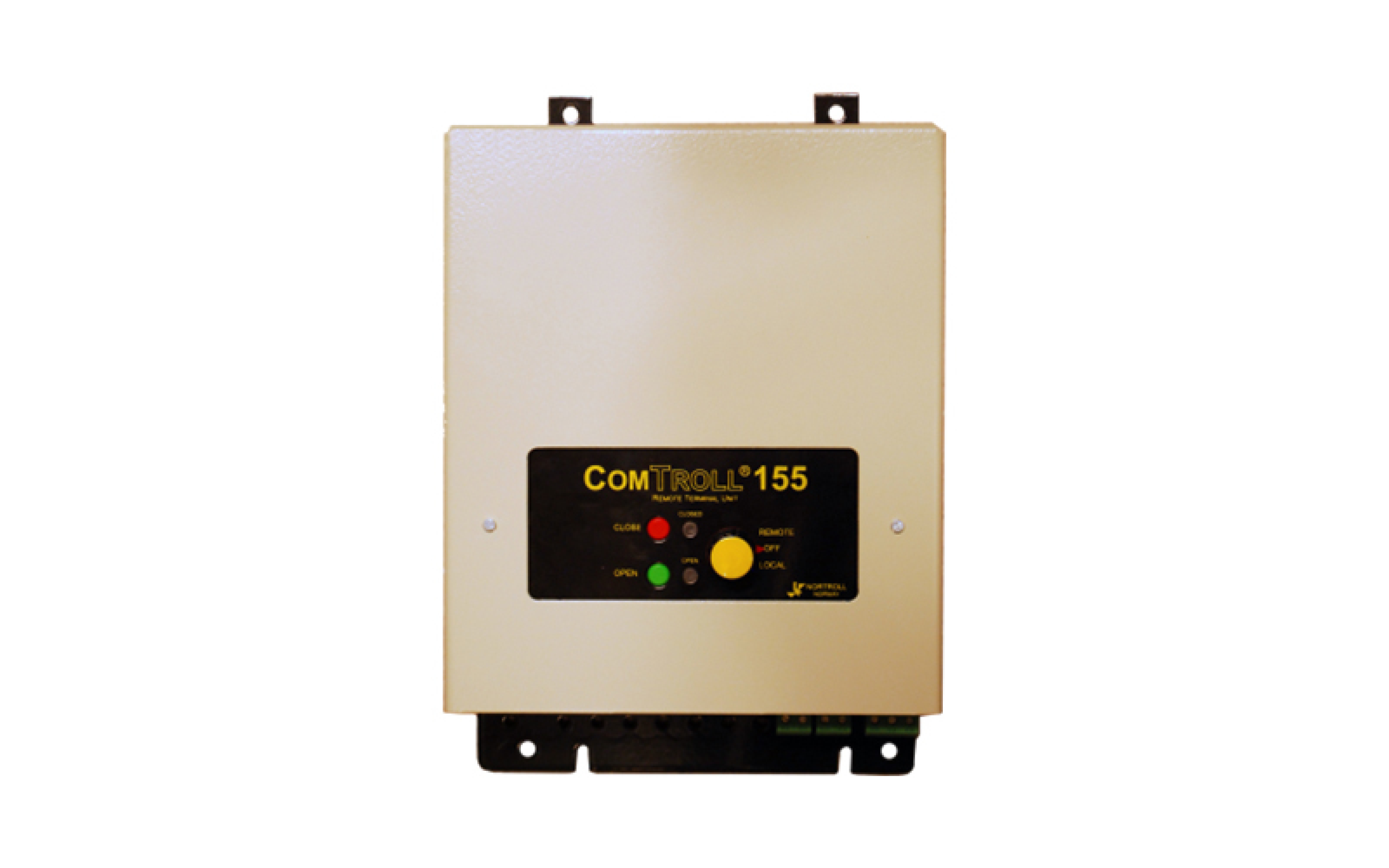

The ComTroll 155 is our standard remote terminal unit (RTU) for motorized switchgear and reclosers, as well as actuators for overhead line switches.

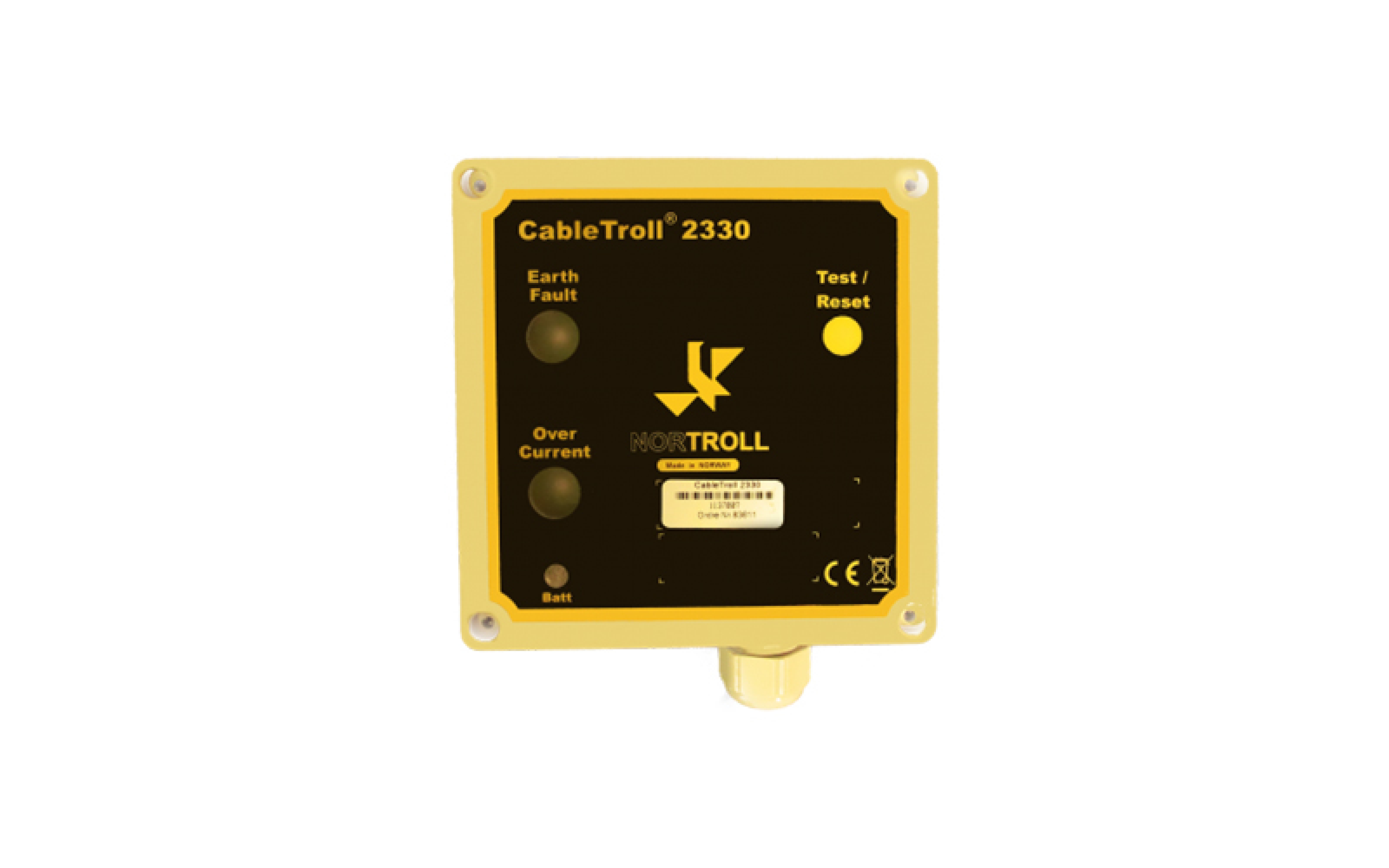

CableTroll 2330 is an indicator for detection of earth faults (PtG) and short circuit (PtP) faults on multi and single core cable terminations. The unit uses NorTroll type current sensors.
The CableTroll indicators are fault current detectors for the underground medium voltage distribution network (6-36kV). They are used to detect short circuit and earth faults, and can be installed on most types of cable terminations. Some units will give separate indication for short circuit and earth faults, locally by flashing diodes and remotely through separate relay contacts or additional ComTroll communication modules.
CABLETROLL fault indicators provide fast fault localisation enabling reduction in outage times.
RTU 150 is a compact RTU designed for use in electricity transmission and distribution systems. Mainly for use with distribution automation equipment in the secondary electricity networks, it can be used as a data concentrator and or a primary SCADA RTU through IEC60870-5-101, IEC60870-5-104, and DNP3 or Modbus protocols. But there are also other application areas that can be applicable, such as wind/water power and oil/gas installation.
25 years designed lifetime - No moving parts or semiconductors in the power circuit

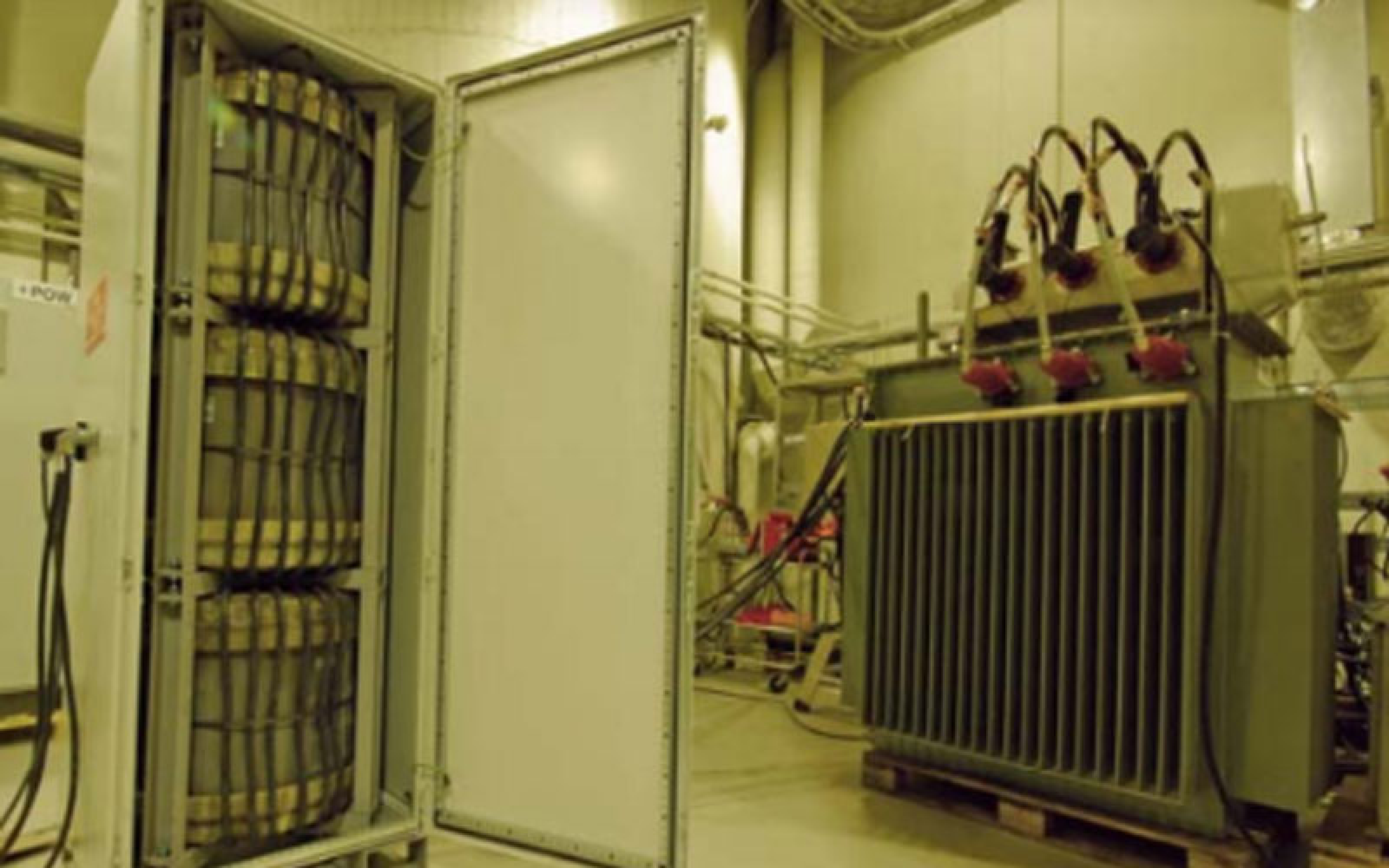

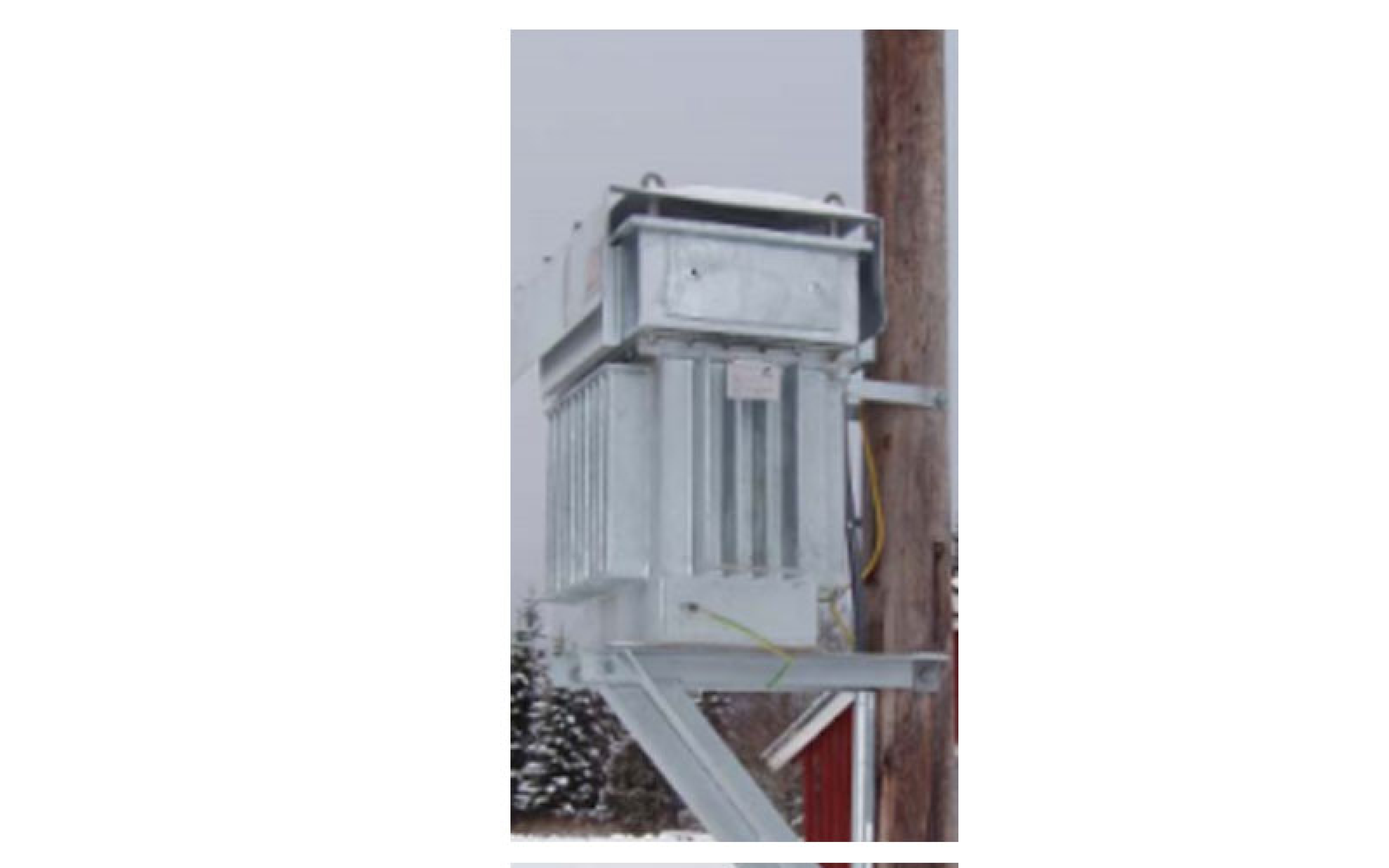

The patented MCI, Magtech Controllable Inductor ? a design with mainly copper and iron in power circuit
Oil cooled, standard transformer oil, optional with organic decomposable oil
System tested before shipment
Lifts and stabilises frequent voltage changes ? unlimited number of voltage corrections
Stabilizing voltage for long LV lines or sea cables. Supporting telecom base station transmitters for GSM and UMTS, vacation homes, weekend cottages, rural homes and stores, farms, fish farms, production plants etc. Provisional power supply for construction areas, tunnels etc. Stabilizing voltage in the grid when voltage fluctuation is caused by distributed generation like solar cells, hydropower or wind- power-plants. Stabilizing and lifting voltage on the LV side, when voltage drop is caused on 1kV or higher. For ground cables in rural or densely populated areas. Mounted on the ground or on poles.
The GIO100 features not only router capabilities for IP connectivity, but also RTU functionality with integrated I/O, accessed using the IEC60870-5-104, DNP3, SIA DC09, SNMP or Modbus TCP protocol. The integrated I/O capabilities are easily expanded by connecting another RTU/IED that supports the Modbus RTU, Modbus TCP, IEC60870-5-101 or IEC60870-5-104 protocol. Combine the GIO100 with an AddSecure Link subscription to create an “AddLink” secure mobile communication system.
The AddSecure Smart Grids GIO100 includes several useful functions, such as text message control, VPN, firewall and port server.
The demand of more control and knowledge regarding the distribution network requires increased number of measurement and control devices in the network. Conventional implementations with separate units for communication and RTU-functionality can be both expensive and complex. GIO200 combines RTU functionality and Gateway features with 2G/3G/4G communication in one single unit. The small form factor and robust metal enclosure makes GIO200 useful in tough environments with limited space. Powerful and multifunctional GIO200 is easy to configure via user-friendly Web interface thanks to the built-in help function.
The solution for centralizing measurement on multiple electrical feeders
Powering the entire Smart-suite.
STANDARD:
Specific design complying with current safety regulations related to opera on and access to electrical de-energized networks and installations.
USE:
This cable identifier is designed to work on a 3 phase de-energized cable short-circuited and earthed at both ends.
This cable identifier is in line with the safety procedure called SECURE IDENTIFICATION and for this provides:
- Cable iden fica on between its ends, in a trench among other cables energized or not, before spiking and cu ng
- Checking of con nuity between two ends of this cable before and after cutting on both sides of the cut.
Positive identifica on of the 3 phase conductors og this cable before and after cutting on both sides og the cut
Simple to use, this device enables a technician working alone to quickly iden fy and check the substa on, the feeders (from 6 to12 feeders) and the phase supplying each customer connection, inseconds !
Applications :
• Checks the network layout in seconds while maintaining energy distribu on – updates cable mapping
• Helps to balance the loads on the phases of the low voltage network
• Also enables you to find a subscriber’s LV power distribu on substa on different tone according to voltage level (discontinuous tone up to 230V and continuous tone above 400V).
STANDARD
EN ISO 20345:2013
ASTM F2413—20KV
USE
Recommended for applications in the electrical industry in dry conditions.
ADVANTAGES
HRO = heat resistance of the sole (300 °C during 1 min),
EH = Dielectric resistance of the sole : up to 20 kV (regarding ASTM F2412)
SRA = an slip profileTECHNICAL SPECIFICATIONS
En rely non-metallic.
Low upper : water repellant full grain leather, derby-type, thickness : 2 mm
Breathable micro-aerated inner lining.
Fastened with laces.
Removable antistatic and antibacterial insole
PU/Nitrile sole, resistant to oil and hydrocarbons, insulated up to 20 kV in dry conditions
An arc-flash or an electric arc is the result of an electric short circuit conducted by the air. It is a violent erup on of thermal energy from a source of lectricity, which can lead to serious or even irreversible burns and injuries, depending on the seriousness of the incident. Electric arc or arc flash hazards become an essen el concern when the rated voltage of the installa on is greater than 220 Volts
It is expressed in calories/cm2,
- 1 cal/cm2 is equivalent to exposing a finger to a lighter flame for a second,
- With only 1.2 cal/cm2, individuals can suffer from second-degree burns,
- Standard non fire-retardant work clothing can ignite from energy levels of 2 calories.
ALADIN is designed to provide extra safety level for workers oper- a ng near energized equipment (during maintenance, rescue opera- ons, pain ng, pruning,...) in electrical environment.
This device combines a head light and a personal voltage alarm
APTV ELECTRICIAN HELMET WITH INTEGRATED FACE SHIELD, ATPV 8,4 CAL/CM2
Helmet:
Advantages:
An -slip ps for a be er support Welding filters grade 3
Adjust itself to all face shapes
Technical specifications:
Protection against UV, bright light, flying particles and infrared light Polycarbonate lens, UV protection, an -scratch and an -fog
Impact resistant (45m/s) and resistant to extreme temperatures (-5°C to +55°C) Op cal quality : class 1
Insulating rubber gloves available in all classes, many sizes, different lengths and colors. Leather protectors are recommended to be worn over Electrovolt gloves to ensure mechanical protection (local regulations, work prac ces and risk analysis apply).
SPIKING cable to check and ensure the absence of voltage not tension on LV and MV underground cables before cutting them
- LV cable 3x240mm2 with reinforced steel wire
- MV cable 3x240mm2 with reinforced steel wire
The spiking of the multi polar cable Enables the user to limit any resulting short circuit to a single-phase / ground fault when spiking multi core cables. This causes any protective devices to trip before a 2 or 3 phase fault can be created.
CUTTING a er spiking opera on in full safetyMAX cable diameter : Ø100mm
Cutting, after the spiking opera on the so disconnected cable may then be safely cut.
After a safety protection guarantee is in effect, the equipment to be worked on must be tested to verify isolation before grounding and blocking begins. A er testing to verify isolation, the person at the worksite responsible for each crew must verify that required grounding and blocking devices are in place before work begins. Grounding and blocking of any equipment that may be hazardous to workers must be carried out as close as practicable to the worksite. If grounding and blocking is not safe or practicable, written safe work procedures acceptable to the Board must be followed. Grounding and blocking devices may be removed for the purpose of conducting tests.
These devices feature an exclusive multi-sensor technology and come with an internal calculator, enabling them to provide at once :
- a wide safety margin for voltage detection, including in difficult configurations,
- better immunity to the influences of other voltages close to the point tested
- Designed to check absence of nominal voltage by direct contact to the line
- It is usually used prior to earthling opera on of a three-phase voltage system
Devices features an electronic detection system with miniature gas discharge tubes.
This original configuration gives it very high performances, especially in the case of high induction and/or parasitic electric fields.
Voltage detector with permanent standby an built-in self test Stability of detection sensitivity and threshold
High electromagnetic immunity
Sound and light indica on to face most environment of work
Device designed to test for the absence of voltage on HV systems up to 735 kV Indica on of the absence of voltage and correct opera on of the device by a green LED
Can be used in all weather
Wireless phase comparator, from 4 kV to 500 kV
An alternative to the voltmeter for checking the phase coincidence in a network before looping.

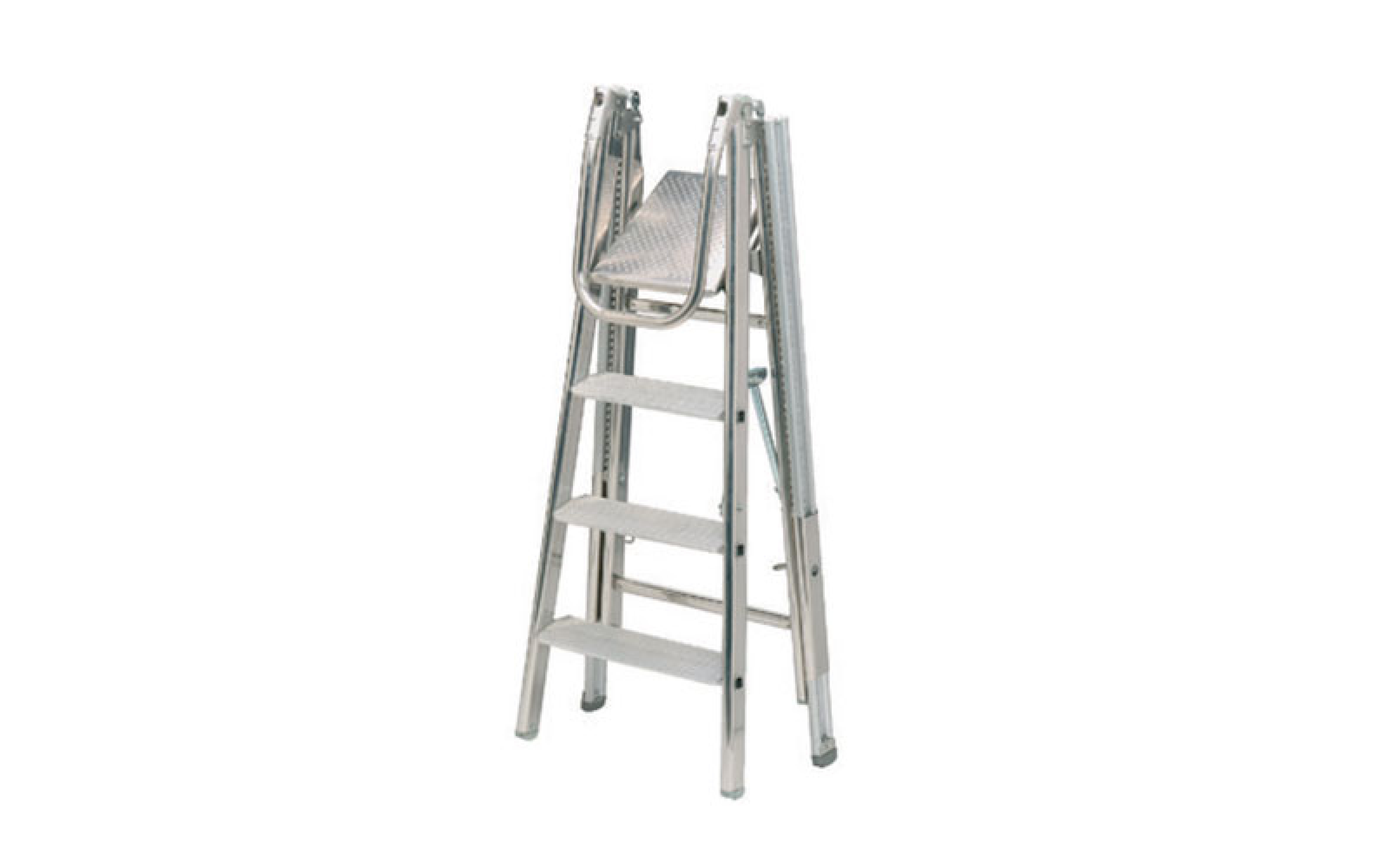

Ladder for live working below 1000 VAC/1500 VDC
Rugged and reliable construction: the ladder is assembled by bolting,
allowing the replacement of rungs and uprights.
Improved ergonomics through the use of rectangular composite profiles with rounded edges.
The VERTEX VENT helmet is very comfortable, thanks to its six-point textile suspension and CENTERFIT and FLIP&FIT systems, which guarantee that the helmet fits securely on the head. The adjustable-strength chinstrap makes it ideal for both work at height and on the ground.
The VERTEX helmet is very comfortable, thanks to its six-point textile suspension and CENTERFIT and FLIP&FIT systems, which guarantee that the helmet fits securely on the head. The adjustable-strength chinstrap makes it ideal for both work at height and on the ground.
The GRILLON HOOK adjustable lanyard is used to make work positioning systems, to complement a fall-arrest system. Its length can be very easily and precisely adjusted as necessary for comfortable positioning at the work station. Its HOOK connector is ideal for using the lanyard in double mode on the harness side attachment points.
ABSORBICA-Y MGO is a double lanyard with compact energy absorber, designed for progression on a vertical structure or a horizontal lifeline and when passing intermediate anchors. It is available in two lengths: 80 or 150 cm versions (without connectors).
Spreader for full body harnesses or seat harnesses used in conjunction with a chest harness, allowing upright descent (for confined spaces).
The AVAO BOD fall arrest, work positioning and suspension harness is designed for greater comfort in all situations. Wide, semi-rigid waistbelt and leg loops give excellent support. Its lightweight, breathable construction maximizes air flow. The shoulder straps have a system for stowing the fall arrest lanyard connectors and keeping them within reach.
The NEWTON fall arrest harness is comfortable for work and easy to use. It offers ergonomic stowage of MGO connectors and has fall indicators. It is certified to North American, European and Russian standards.
The VOLT fall-arrest and work positioning harness is very easy to don, thanks to the FAST LT PLUS automatic buckles that allow the harness to be donned with feet on the ground. Wide, semi-rigid waistbelt and leg loops give excellent support. Its lightweight, breathable construction maximizes air flow. It features a textile dorsal attachment point designed for connecting a self-retracting fall-arrest system. It is certified to U.S. and European standards.
When braking or stopping a vessel using electrical propulsion, the kinetic energy needs to be dissipated. The simplest way is to dissipate this energy into a resistor.
Pre-insertion Resistors are used to limit transients during circuit energization. They are characterized by a high resistance value and a high thermal mass which allows for a high amount of energy to be absorbed.
When starting, an electrical motor has a huge current demand. Inserting a resistor in the circuit (on stator side for squirrel cage motors and on rotor side for ring type motors) will help reduce current appeal, control torque level and pilot starting phase duration.
Load Banks simulate an electric load.
They are used in a variety of applications, including:
Harmonic Filters are used to absorb harmonic currents in order to limit the distortion transmitted to the network. Get more information on filter circuits here. Damping resistors can be included in the circuit to adjust the quality factor of the filter.
The series of electronic analogic protective relays here below presented has been designed according to the most advanced technologies in order to obtain the highest reliability, accuracy and immunity to interference and is made with first choice components safely dimensioned and protected. The application of severe testing and quality control procedures guarantees the reliability of the product.
G-Base is the new generation of Microelettrica Scientifica's base-performance protection relays. This range is the ideal solution for protection and automation, thanks to its high configurability. It is based on the same powerful microprocessor adopted on high-performance G-Pro range. G-Base platform is based on a four-channel configuration, allowing it to be used for current and voltage protection functions. MC30-2T, part of the G-Base range, is a relay designed for the interface to the power distribution grid
Flashing frequency: 55 to 90 pulses / min (fixed frequency) Instantaneous contact
AC/DC coil
Instantaneous contacts
DC coil
This range consists of several models : BBY1, BBY2, BBY5 and WX9.
This range consists of several models : BBY1, BBY2, BBY5 and WX9.
REMINDER: the purpose of the HV fuses is to insulate the busbar from the transformer in case of a failure and not to protect the VT against overloading. All our voltage transformers can be supplied with primary fuses.
This range can be split into 2 parts:
The combine unit is made up of 1 CT and 1VT in the same casted body. It saves a lot of space and time during installation. However, its specifications are limited by its size and it is usually used for revenue metering applications.
This kind of ring type CT is specially studied to be mounted around the insulated bushings of transformers or alternators. Several dimensions are available in order to fulfil every requirement depending on the size of the bushings and the required features of each core.
Our outdoor current transformers can be broken down into the following 3 ranges:
All these units are made using the same process: casting in one epoxy resin piece, which is highly resistant to vibration while being compact and lightweight.
Our indoor current transformers can be broken down into the following 3 ranges:
Protect your electrical circuits from the damage of over current, overload or a short circuit and live safe with Havells circuit breakers
The current-limiting fuses are components whose main function is to protect electrical equipment such as distribution transformers, motors and capacitor banks against over currents. INAEL, manufacturer with a long experience in this product,
Circuit breakers cut-out ejection are unipolar equipment installed in leads or branches overhead electrical distribution lines to protect equipment against over currents.
The data collector FWT200 for FCI ? SIX has been developed to offer excellent operating features, low maintenance, configuration flexibility and vandal-resistant for pole installation. The data collector allows managing nine (9) SIX-DG (Sectionalizer), and reporting the information acquired through them to a web-server. For this propose, it uses a radio-frequency link for communication with SIX-DG and a GPRS link for the server communication.
The FWT is an autonomous portable device to query and configure the SIX DG RF, either wireless or using a connection cable. It has a RTC (real time clock) for register time and date, and a non-volatile memory with enough capacity to store all the data gathered from the field.
The CELSA interchangeable electronic sectionalizer is an automatic tripping device that can sectionalize failure on down-stream protected circuits from the main recloser or breaker. It does not have the capability to interrupt failure currents.
We have several types of current transformers with standard ratios in stock. Splittable CT's are delivered with 4 m cable. Temperature range: -30ºC to 80ºC, Isolation level: 3 kV
Directional Fault Detector with Built-in RTU IPC4022 is a fault detector for overcurrent and earth faults with integrated remote terminal unit functionality. It has I/O for indications
Directional Fault Detector With Build-in RTU IPC4020 is a fault detector for overcurrent and earth faults with integrated remote terminal unit functionality. It has I/O for indications and orders and is therefore suitable for a typical secondary substation with up to four objects. The standard IPC4020 detects faults on one feeder. It can be ordered with an expansion module that allows fault detection of 2 additional feeders.
Fault indicator with two configurable closing contacts, function specified at order, see datasheet. Overcurrent and earth fault detection with multiple levels. Operate time configurable. Two binära inputs. IEC60870-5-101 via RS485 (option, see datasheet). Power supply 24 - 48 VDC.
Fault indication with LED (LED unit is included). After power disruption the detector signals with a red flash for pass-through faults and green if no fault current has passed. The LED unit, locatated at the outside of the secondary substation, is activated when the substation becomes unenergized.
ComTroll 115C is a 2.4 GHz short range radio module for integrating Line Troll 110 Eur/Tur overhead line indicators to remote control (RTU)/SCADA systems.
The LineTroll R110C RIS Remote Indicator System uses line mounted fault indicator LineTroll 110E?r and the pole mounted SMS/GPRS sending device LineTroll R110CQ.
CableTroll 2310 is an indicator for detection of earth faults (PtG) on multi-core and single core cable terminations. The unit uses NorTroll type current sensor (CT)
Distribution Networks (6-50kV) LineTroll 110E?R is a line mounted indicator for detection of PtG and PtP faults in overhead line networks.
